ÖLFLEX® WIRE MS 2.1 1X1,5 PK

Single core; 1X1.5; pink; Ring; U0/U: 450/750 V; PVC; HAR-certified; UL listed; Fixed installation
LAPPSKU: 4160408Article No.#: 4160408

ÖLFLEX® WIRE MS 2.1 1X1,5 PK

Single core; 1X1.5; pink; Ring; U0/U: 450/750 V; PVC; HAR-certified; UL listed; Fixed installation
ÖLFLEX® WIRE MS 2.1 1X1,5 PK
RM4.20 MYR
Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant flame-retardant
oil resistant oil resistant
Product Carbon Footprint Product Carbon Footprint
Certificate
CE marked CE marked
Harmonisation marking Harmonisation marking
UL recognized UL recognized
UL listed UL listed
CSA certified CSA certified
Benefits
Manufactured according to harmonised European type H07V-K, with ◁HAR▷ testing mark for proven reliability and quality (not applicable for dimensions 0.5 / 0.75 / 1.0 / 16 mm², for single colours green and yellow and for double colours (except green/yellow))
UL certification according to technical data enables the product to be used on the North American market
Product with multiple certifications enables universal use and reduces the variety of parts, thus guaranteeing logistics savings
Compact design for easy processing
Versatile use in various applications and environments
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website
Different core insulation colours available
Available as ring or in large, disposable cardboard boxes. Large cardboard boxes are available depending on the colour and cross-section and generally only up to 6 mm² conductor cross-section.
Applications
For wiring circuits inside machines
Suitable for wiring inside control cabinets
Suitable for use in AC and DC charging infrastructures for electromobility
For fixed and protected installation
Can be used in dry and damp rooms
Suitable for use at temperatures up to -40°C.

Technical Attributes

General Information
Length per PU 100
Single core packaging type Ring
Brand ÖLFLEX®
Product type Single core
Copper index 14.400  kg/km
Copper index (lb) 96.750  lb
Weight 20 kg/km
Electrical Characteristics
Nominal voltage U0/U: 450/750 V AC rms according to IEC
Max. conductor resistance at 20°C 13.7  Ω/km
Test voltage 2.5  kV
Rated voltage 600 V AC rms according to UL MTW, 600 V AC rms according to CSA TEW, 600 V AC rms according to UL AWM
Product Design
Single core colour pink

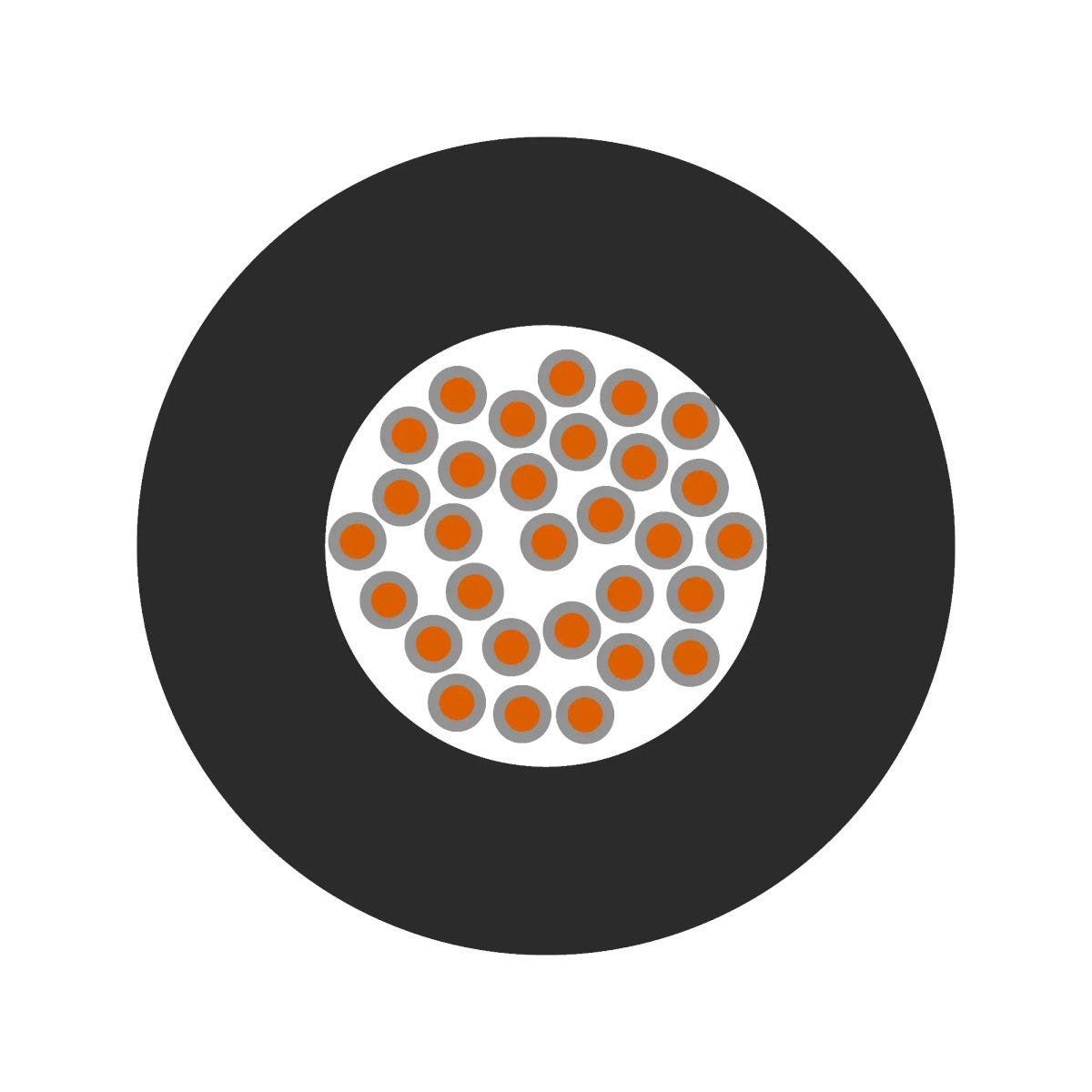

Conductor design IEC 60228 class 5: fine-wire
Nominal outer diameter 3.1  mm
Conductor material Tin-plated copper
Harmonised design H07V-K
Nominal conductor cross-section (metric) 1.5  mm²
Cable dimension 1X1.5
Shape of cable Round
Leading conductor cross-section mm²
Number of cores 1
Nominal conductor cross-section (AWG) 16 AWG
Core insulation basic material Polyvinylchloride
Single core identification Single-coloured
Core insulation basic material, short form PVC
Product Characteristics
Flame-retardant

PWIS-free according to VDMA 24364-B2-L
Ozone resistant

UV-resistant

Minimum bending radius in mm, fixed installation 12.4  mm
PWIS-free

Application area Fixed installation
Oil-resistant

Minimum bending radius with careful bending 2 x outer diameter
weather resistant

Minimum bending radius, stationary 4 x outer diameter
Temperature, fixed installation -40 °C to 70 °C max. conductor temperature: according to EN, to 105 °C max. conductor temperature: according to UL AWM, to 105 °C max. conductor temperature: according to CSA TEW, to 90 °C max. conductor temperature: according to UL MTW
Flame retardance according to IEC 60332-1-2, UL VW-1, CSA FT1
Halogenfree

Certifications and Standards
cUR recognized

CSA certified

Product standard DIN / EN EN 50525-2-31
UL AWM certification 1015 according to UL 758 (e-file number: E63634)
HAR-certified

UL certification UL MTW according to UL 1063 (e-file number: E198296)
cUL listed

Flame retardance tested according to UN/ECE-R118

UL listed

CE marked

CPR fire class Eca
UL recognized

VDE certified

CSA certification TEW according to CSA C22.2 No. 127
EAC certification number ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

Documentation
Downloads
Approval UL - en-UK (PDF)
Approval UL - en-UK (PDF)
approval vde - de-DE (PDF)
CE declaration of conformity - en-UK (PDF)
cpr declaration of conformity - en-UK (PDF)
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
trcu declaration of conformity - ru-RU (PDF)
Further Links
EPLAN Data in EPLAN Data Portal
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ÖLFLEX® WIRE MS 2.1
Article number Conductor cross-section (mm2) Single core colour Single core packaging type Imp length per pu Length per PU Imp outer dia cable sheath nom Nominal outer diameter Copper index calc export Weight
4160100 0.5 green/yellow Ring 100 2.5 10 kg/km
4160101 0.5 black Ring 100 2.5 10 kg/km
4160101K 0.5 black Large cardboard box 3000 2.5 10 kg/km
4160102 0.5 blue Ring 100 2.5 11 kg/km
4160102K 0.5 blue Large cardboard box 3000 2.5 10 kg/km
4160103 0.5 brown Ring 100 2.5 11 kg/km
4160103K 0.5 brown Large cardboard box 3000 2.5 10 kg/km
4160104 0.5 red Ring 100 2.5 10 kg/km
4160104K 0.5 red Large cardboard box 3000 2.5 10 kg/km
4160105 0.5 white Ring 100 2.5 11 kg/km
4160105K 0.5 white Large cardboard box 3000 2.5 10 kg/km
4160106 0.5 grey Ring 100 2.5 11 kg/km
4160106K 0.5 grey Large cardboard box 3000 2.5 10 kg/km
4160107 0.5 violet Ring 100 2.5 10 kg/km
4160107K 0.5 violet Large cardboard box 3000 2.5 10 kg/km
4160108 0.5 pink Ring 100 2.5 10 kg/km
4160109 0.5 orange Ring 100 2.5 10 kg/km
4160109K 0.5 orange Large cardboard box 3000 2.5 10 kg/km
4160110 0.5 yellow Ring 100 2.5 10 kg/km
4160111 0.5 green Ring 100 2.5 10 kg/km
4160114 0.5 dark blue Ring 100 2.5 11 kg/km
4160114K 0.5 dark blue Large cardboard box 3000 2.5 10 kg/km
4160126 0.5 blue/white Ring 100 2.5 10 kg/km
4160144 0.5 white/blue Ring 100 2.5 10 kg/km
4160144K 0.5 white/blue Large cardboard box 3000 2.5 10 kg/km
4160200 0.75 green/yellow Ring 100 2.7 14 kg/km
4160200K 0.75 green/yellow Large cardboard box 2500 2.7 12 kg/km
4160201 0.75 black Ring 100 2.7 14 kg/km
4160201K 0.75 black Large cardboard box 2500 2.7 12 kg/km
4160202 0.75 blue Ring 100 2.7 14 kg/km
4160202K 0.75 blue Large cardboard box 2500 2.7 12 kg/km
4160203 0.75 brown Ring 100 2.7 14 kg/km
4160203K 0.75 brown Large cardboard box 2500 2.7 12 kg/km
4160204 0.75 red Ring 100 2.7 14 kg/km
4160205 0.75 white Ring 100 2.7 14 kg/km
4160205K 0.75 white Large cardboard box 2500 2.7 12 kg/km
4160206 0.75 grey Ring 100 2.7 14 kg/km
4160206K 0.75 grey Large cardboard box 2500 2.7 12 kg/km
4160207 0.75 violet Ring 100 2.7 14 kg/km
4160207K 0.75 violet Large cardboard box 2500 2.7 12 kg/km
4160208 0.75 pink Ring 100 2.7 14 kg/km
4160209 0.75 orange Ring 100 2.7 14 kg/km
4160209K 0.75 orange Large cardboard box 2500 2.7 12 kg/km
4160210 0.75 yellow Ring 100 2.7 14 kg/km
4160211 0.75 green Ring 100 2.7 14 kg/km
4160214 0.75 dark blue Ring 100 2.7 14 kg/km
4160214K 0.75 dark blue Large cardboard box 2500 2.7 12 kg/km
4160226 0.75 blue/white Ring 100 2.7 14 kg/km
4160226K 0.75 blue/white Large cardboard box 2500 2.7 12 kg/km
4160244 0.75 white/blue Ring 100 2.7 14 kg/km
4160244K 0.75 white/blue Large cardboard box 2500 2.7 12 kg/km
4160300 1 green/yellow Ring 100 2.9 17 kg/km
4160300K 1 green/yellow Large cardboard box 2000 2.9 16 kg/km
4160301 1 black Ring 100 2.9 16 kg/km
4160301K 1 black Large cardboard box 2000 2.9 16 kg/km
4160302 1 blue Ring 100 2.9 16 kg/km
4160302K 1 blue Large cardboard box 2000 2.9 16 kg/km
4160303 1 brown Ring 100 2.9 16 kg/km
4160303K 1 brown Large cardboard box 2000 2.9 16 kg/km
4160304 1 red Ring 100 2.9 16 kg/km
4160304K 1 red Large cardboard box 2000 2.9 16 kg/km
4160305 1 white Ring 100 2.9 16 kg/km
4160305K 1 white Large cardboard box 2000 2.9 16 kg/km
4160306 1 grey Ring 100 2.9 16 kg/km
4160306K 1 grey Large cardboard box 2000 2.9 16 kg/km
4160307 1 violet Ring 100 2.9 16 kg/km
4160308 1 pink Ring 100 2.9 16 kg/km
4160309 1 orange Ring 100 2.9 16 kg/km
4160309K 1 orange Large cardboard box 2000 2.9 16 kg/km
4160310 1 yellow Ring 100 2.9 17 kg/km
4160310K 1 yellow Large cardboard box 2000 2.9 16 kg/km
4160311 1 green Ring 100 2.9 16 kg/km
4160314 1 dark blue Ring 100 2.9 16 kg/km
4160314K 1 dark blue Large cardboard box 2000 2.9 16 kg/km
4160326 1 blue/white Ring 100 2.9 16 kg/km
4160326K 1 blue/white Large cardboard box 2000 2.9 16 kg/km
4160344 1 white/blue Ring 100 2.9 16 kg/km
4160344K 1 white/blue Large cardboard box 2000 2.9 16 kg/km
4160400 1.5 green/yellow Ring 100 3.1 20 kg/km
4160400K 1.5 green/yellow Large cardboard box 1500 3.1 20 kg/km
4160401 1.5 black Ring 100 3.1 22 kg/km
4160401K 1.5 black Large cardboard box 1500 3.1 20 kg/km
4160402 1.5 blue Ring 100 3.1 22 kg/km
4160402K 1.5 blue Large cardboard box 1500 3.1 20 kg/km
4160403 1.5 brown Ring 100 3.1 20 kg/km
4160403K 1.5 brown Large cardboard box 1500 3.1 20 kg/km
4160404 1.5 red Ring 100 3.1 20 kg/km
4160404K 1.5 red Large cardboard box 1500 3.1 20 kg/km
4160405 1.5 white Ring 100 3.1 22 kg/km
4160405K 1.5 white Large cardboard box 1500 3.1 20 kg/km
4160406 1.5 grey Ring 100 3.1 20 kg/km
4160406K 1.5 grey Large cardboard box 1500 3.1 20 kg/km
4160407 1.5 violet Ring 100 3.1 20 kg/km
4160408 1.5 pink Ring 100 3.1 20 kg/km
4160409 1.5 orange Ring 100 3.1 20 kg/km
4160409K 1.5 orange Large cardboard box 1500 3.1 20 kg/km
4160410 1.5 yellow Ring 100 3.1 20 kg/km
4160410K 1.5 yellow Large cardboard box 1500 3.1 20 kg/km
4160411 1.5 green Ring 100 3.1 20 kg/km
4160414 1.5 dark blue Ring 100 3.1 22 kg/km
4160414K 1.5 dark blue Large cardboard box 1500 3.1 20 kg/km
4160426 1.5 blue/white Ring 100 3.1 22 kg/km
4160426K 1.5 blue/white Large cardboard box 1500 3.1 20 kg/km
4160444 1.5 white/blue Ring 100 3.1 20 kg/km
4160444K 1.5 white/blue Large cardboard box 1500 3.1 20 kg/km
4160457 1.5 white/yellow Ring 100 3.1 20 kg/km
4160500 2.5 green/yellow Ring 100 3.7 31 kg/km
4160500K 2.5 green/yellow Large cardboard box 900 3.7 32 kg/km
4160501 2.5 black Ring 100 3.7 37 kg/km
4160501K 2.5 black Large cardboard box 900 3.7 32 kg/km
4160502 2.5 blue Ring 100 3.7 31 kg/km
4160502K 2.5 blue Large cardboard box 900 3.7 32 kg/km
4160503 2.5 brown Ring 100 3.7 37 kg/km
4160503K 2.5 brown Large cardboard box 900 3.7 37 kg/km
4160504 2.5 red Ring 100 3.7 31 kg/km
4160504K 2.5 red Large cardboard box 900 3.7 37 kg/km
4160505 2.5 white Ring 100 3.7 37 kg/km
4160505K 2.5 white Large cardboard box 900 3.7 31 kg/km
4160506 2.5 grey Ring 100 3.7 37 kg/km
4160506K 2.5 grey Large cardboard box 900 3.7 37 kg/km
4160507 2.5 violet Ring 100 3.7 37 kg/km
4160509 2.5 orange Ring 100 3.7 37 kg/km
4160509K 2.5 orange Large cardboard box 900 3.7 37 kg/km
4160510 2.5 yellow Ring 100 3.7 37 kg/km
4160510K 2.5 yellow Large cardboard box 900 3.7 37 kg/km
4160511 2.5 green Ring 100 3.7 31 kg/km
4160514 2.5 dark blue Ring 100 3.7 31 kg/km
4160514K 2.5 dark blue Large cardboard box 900 3.7 37 kg/km
4160526 2.5 blue/white Ring 100 3.7 37 kg/km
4160544 2.5 white/blue Ring 100 3.7 31 kg/km
4160544K 2.5 white/blue Large cardboard box 900 3.7 37 kg/km
4160600 4 green/yellow Ring 100 4.3 49 kg/km
4160600K 4 green/yellow Large cardboard box 600 4.3 45 kg/km
4160601 4 black Ring 100 4.3 49 kg/km
4160601K 4 black Large cardboard box 600 4.3 45 kg/km
4160602 4 blue Ring 100 4.3 45 kg/km
4160602K 4 blue Large cardboard box 600 4.3 45 kg/km
4160603 4 brown Ring 100 4.3 49 kg/km
4160603K 4 brown Large cardboard box 600 4.3 44 kg/km
4160604 4 red Ring 100 4.3 49 kg/km
4160604K 4 red Large cardboard box 600 4.3 44 kg/km
4160605 4 white Ring 100 4.3 49 kg/km
4160606 4 grey Ring 100 4.3 49 kg/km
4160607 4 violet Ring 100 4.3 49 kg/km
4160609 4 orange Ring 100 4.3 49 kg/km
4160609K 4 orange Large cardboard box 600 4.3 44 kg/km
4160610 4 yellow Ring 100 4.3 44 kg/km
4160610K 4 yellow Large cardboard box 600 4.3 44 kg/km
4160611 4 green Ring 100 4.3 44 kg/km
4160614 4 dark blue Ring 100 4.3 49 kg/km
4160614K 4 dark blue Large cardboard box 600 4.3 44 kg/km
4160626 4 blue/white Ring 100 4.3 45 kg/km
4160644 4 white/blue Ring 100 4.3 45 kg/km
4160700 6 green/yellow Ring 100 4.8 68 kg/km
4160700K 6 green/yellow Large cardboard box 400 4.8 63 kg/km
4160701 6 black Ring 100 4.8 67 kg/km
4160701K 6 black Large cardboard box 400 4.8 63 kg/km
4160702 6 blue Ring 100 4.8 68 kg/km
4160702K 6 blue Large cardboard box 400 4.8 63 kg/km
4160703 6 brown Ring 100 4.8 63 kg/km
4160704 6 red Ring 100 4.8 68 kg/km
4160704K 6 red Large cardboard box 400 4.8 63 kg/km
4160705 6 white Ring 100 4.8 63 kg/km
4160706 6 grey Ring 100 4.8 63 kg/km
4160706K 6 grey Large cardboard box 400 4.8 63 kg/km
4160707 6 violet Ring 100 4.8 63 kg/km
4160709 6 orange Ring 100 4.8 67 kg/km
4160709K 6 orange Large cardboard box 400 4.8 63 kg/km
4160710 6 yellow Ring 100 4.8 63 kg/km
4160711 6 green Ring 100 4.8 63 kg/km
4160714 6 dark blue Ring 100 4.8 63 kg/km
4160714K 6 dark blue Large cardboard box 400 4.8 63 kg/km
4160726 6 blue/white Ring 100 4.8 63 kg/km
4160744 6 white/blue Ring 100 4.8 63 kg/km
4160800 10 green/yellow Ring 100 6.5 116 kg/km
4160801 10 black Ring 100 6.5 120 kg/km
4160802 10 blue Ring 100 6.5 120 kg/km
4160803 10 brown Ring 100 6.5 120 kg/km
4160804 10 red Ring 100 6.5 120 kg/km
4160805 10 white Ring 100 6.5 120 kg/km
4160806 10 grey Ring 100 6.5 120 kg/km
4160809 10 orange Ring 100 6.5 120 kg/km
4160810 10 yellow Ring 100 6.5 120 kg/km
4160811 10 green Ring 100 6.5 120 kg/km
4160814 10 dark blue Ring 100 6.5 120 kg/km
4160826 10 blue/white Ring 100 6.5 120 kg/km
4160844 10 white/blue Ring 100 6.5 120 kg/km
4160900 16 green/yellow Ring 100 8.6 185 kg/km
4160901 16 black Ring 100 8.6 185 kg/km
4160902 16 blue Ring 100 8.6 185 kg/km
4160903 16 brown Ring 100 8.6 185 kg/km
4160904 16 red Ring 100 8.6 185 kg/km
4160905 16 white Ring 100 8.6 185 kg/km
4160906 16 grey Ring 100 8.6 185 kg/km
4160909 16 orange Ring 100 8.6 185 kg/km
4160910 16 yellow Ring 100 8.6 185 kg/km
4160911 16 green Ring 100 8.6 185 kg/km
4160914 16 dark blue Ring 100 8.6 185 kg/km
4161000 25 green/yellow Ring 100 9.8 260 kg/km
4161001 25 black Ring 100 9.8 260 kg/km
4161002 25 blue Ring 100 9.8 260 kg/km
4161003 25 brown Ring 100 9.8 260 kg/km
4161004 25 red Ring 100 9.8 260 kg/km
4161005 25 white Ring 100 9.8 260 kg/km
4161006 25 grey Ring 100 9.8 261 kg/km
4161009 25 orange Ring 100 9.8 260 kg/km
4161010 25 yellow Ring 100 9.8 260 kg/km
4161011 25 green Ring 100 9.8 260 kg/km
4161100 35 green/yellow Ring 100 11.3 360 kg/km
4161101 35 black Ring 100 11.3 360 kg/km
4161102 35 blue Ring 100 11.3 360 kg/km
4161104 35 red Ring 100 11.3 360 kg/km
4161105 35 white Ring 100 11.3 360 kg/km
4161106 35 grey Ring 100 11.3 360 kg/km
4161111 35 green Ring 100 11.3 360 kg/km
4161200 50 green/yellow Ring 100 13.5 535 kg/km
4161201 50 black Ring 100 13.5 535 kg/km
4161202 50 blue Ring 100 13.5 535 kg/km
4161211 50 green Ring 100 13.5 535 kg/km
4161300 70 green/yellow Ring 100 15.6 735 kg/km
4161301 70 black Ring 100 15.6 735 kg/km
4161400 95 green/yellow Ring 100 17.8 930 kg/km
4161401 95 black Ring 100 17.8 930 kg/km
4161402 95 blue Ring 100 17.8 930 kg/km
4161500 120 green/yellow Ring 100 19.4 1160 kg/km
4161501 120 black Ring 100 19.4 1160 kg/km
4161502 120 blue Ring 100 19.4 1285 kg/km
