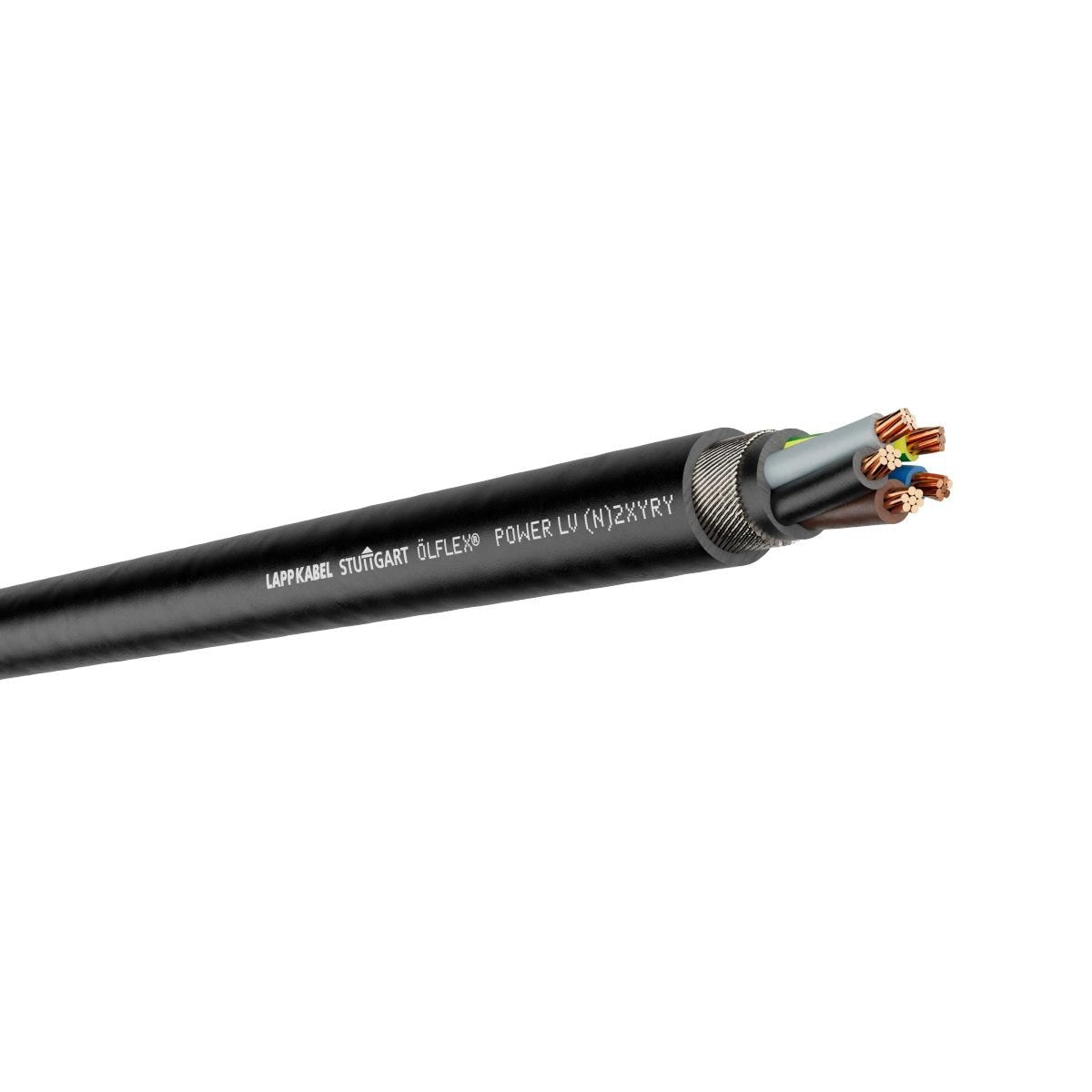

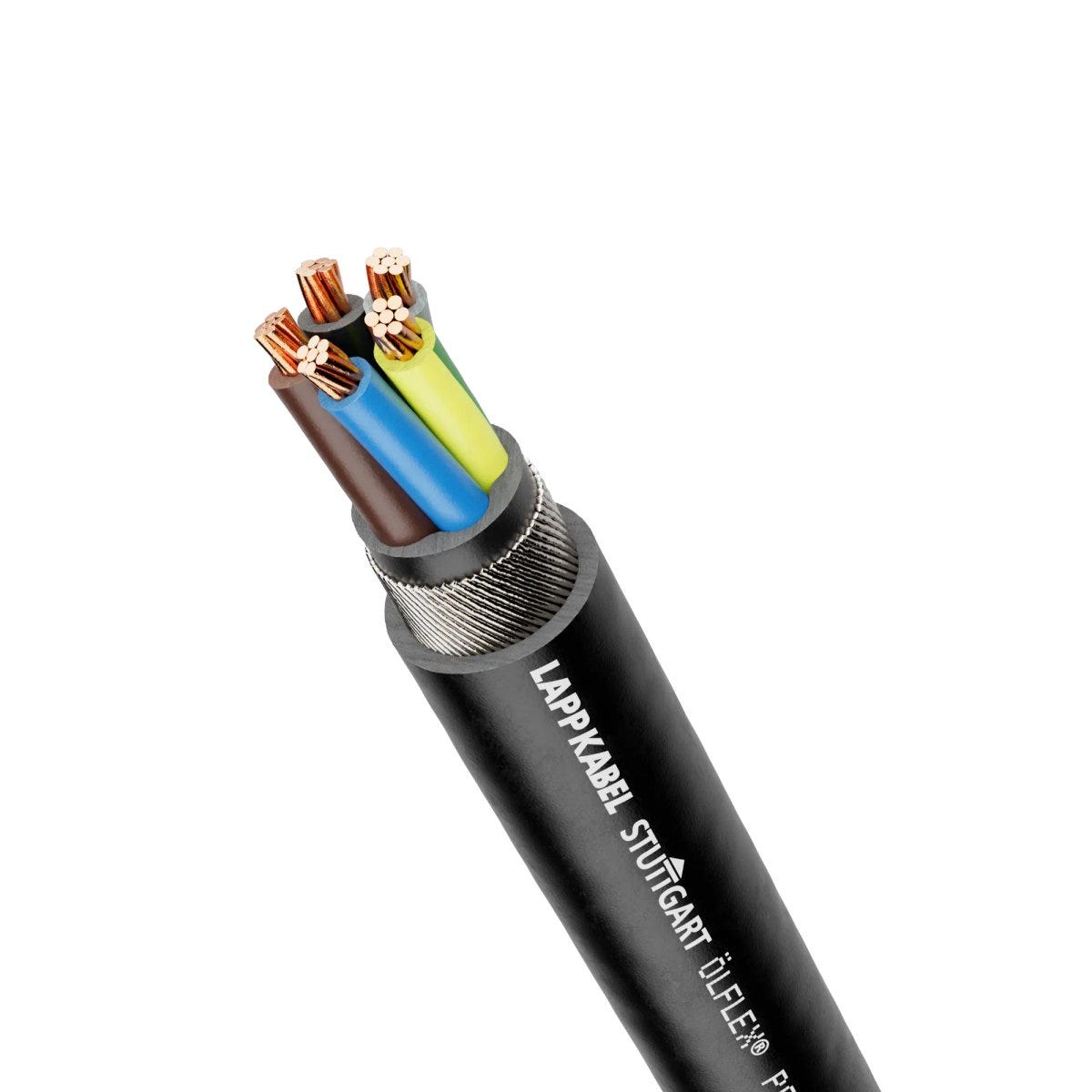

ÖLFLEX® POWER LV (N)2XYRY 12x1.5 BK

Power cables; 12x1.5 RM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM528.70 MYR Sold out
Inclusive of tax
Primary ImagePrimary Image
Secondary ImageSecondary Image
Tertiary ImageTertiary Image
Primary Image
Secondary Image
Tertiary Image
LAPPSKU: 3804063Article No.#: 3804063

ÖLFLEX® POWER LV (N)2XYRY 12x1.5 BK

Power cables; 12x1.5 RM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM528.70 MYR Sold out
Inclusive of tax
Primary Image
ÖLFLEX® POWER LV (N)2XYRY 12x1.5 BK
RM52.87 MYR
Payment & Security
PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant flame-retardant
uv-resistant. uv-resistant.
Certificate
CE marked CE marked
Benefits
XLPE-insulated, PVC-sheathed, low voltage power cable, with 600/1000V nominal voltage
Extra mechanical protection due to steel armour
Flame retardant according to IEC 60332-1, reducing the risk of flame propagation
Multi-stranded wire according to IEC 60228 CI.2
Good flexibility due to minimum bending radius of 10 x cable diameter.
Applications
For main power distribution and lighting circuits in residential and commercial areas
For use in power and control circuits and telecommunication power supply systems
Suitable for fixed installations in environments with ambient temperatures between -40°C to +90°C
Suitable for outdoor applications due to UV-resistant outer sheath.

Technical Attributes

General Information
Product type Power cables
Brand ÖLFLEX®
Copper index 169.200  kg/km
Weight 837 kg/km
Electrical Characteristics
Nominal voltage U0/U: 0,6/1 kV AC rms according to IEC
Test voltage 3.5  kV
Product Design
Conductor abbreviation 12x1.5 RM
Shape of cable Round
Outer sheath colour black
Conductor design IEC 60228 class 2: multi-wire
Nominal outer diameter 20.6  mm
Conductor material Bare copper
Conductor shape Round
Number of cores 12
Nominal conductor cross-section (metric) 1.5  mm²
Core insulation basic material Cross-linked polyethylene
Conductor count/size 12x1.5
Basic material of outer sheath Polyvinylchloride
Including protective earth

Core insulation basic material, short form XLPE
Shielded

Basic material of outer sheath, short form PVC
Product Characteristics
Flame-retardant

Application area Fixed installation
Oil-resistant

Temperature, fixed installation min -40
Temperature, fixed installation max 90
UV-resistant

Minimum bending radius, stationary 10 x outer diameter
Temperature, fixed installation -40 °C to 90 °C max. conductor temperature
Flame retardance according to IEC 60332-1-2
Minimum bending radius in mm, fixed installation 206.0  mm
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Suitable for underground installation direct, in cable trench, in protective cable conduit
For torsional load

Halogenfree

Certifications and Standards
HAR-certified

CE marked

VDE certified

Documentation
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ÖLFLEX® POWER LV (N)2XYRY
Article number Conductor abbreviation Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
3800330 2x1.5 RM 323 kg/km
3800331 3x1.5 RM 356 kg/km
3800332 4x1.5 RM 398 kg/km
3800333 2x2.5 RM 374 kg/km
3800334 3x2.5 RM 418 kg/km
3800335 4x2.5 RM 478 kg/km
3800336 2x4 RM 445 kg/km
3800337 3x4 RM 507 kg/km
3800338 4x4 RM 679 kg/km
3800339 2x6 RM 610 kg/km
3800340 3x6 RM 710 kg/km
3800341 4x6 RM 829 kg/km
3800342 2x10 RM 775 kg/km
3800343 3x10 RM 925 kg/km
3800344 4x10 RM 1093 kg/km
3800345 2x16 RM 980 kg/km
3800346 3x16 RM 1350 kg/km
3800347 4x16 RM 1600 kg/km
3800348 2x25 RM 1472 kg/km
3800350 3x25 RM 1840 kg/km
3800353 4x25 RM 2228 kg/km
3800356 2x35 SM 1815 kg/km
3800358 3x35 SM 2290 kg/km
3800359 3x35 RM/16 2521 kg/km
3800361 4x35 SM 2817 kg/km
3800362 2x50 SM 2287 kg/km
3800363 3x50 SM 2958 kg/km
3800364 3x50 RM/25 3560 kg/km
3800365 4x50 SM 3990 kg/km
3800366 2x70 SM 3205 kg/km
3800367 3x70 SM 4205 kg/km
3800368 3x70 RM/35 4688 kg/km
3800369 4x70 SM 5222 kg/km
3800370 2x95 SM 4040 kg/km
3800371 3x95 SM 5306 kg/km
3800372 3x95 RM/50 5984 kg/km
3800373 4x95 SM 7064 kg/km
3800374 2x120 SM 4850 kg/km
3800375 3x120 SM 6830 kg/km
3800376 3x120 RM/70 7869 kg/km
3800377 4x120 SM 8609 kg/km
3800378 2x150 SM 6274 kg/km
3800379 3x150 SM 8262 kg/km
3800380 3x150 RM/70 9172 kg/km
3800381 4x150 SM 10352 kg/km
3800382 2x185 SM 7485 kg/km
3800383 3x185 SM 9904 kg/km
3800384 3x185 RM/95 11204 kg/km
3800385 4x185 SM 12530 kg/km
3800386 2x240 SM 9260 kg/km
3800387 3x240 SM 12341 kg/km
3800388 3x240 RM/120 13891 kg/km
3800389 4x240 SM 15668 kg/km
3800390 2x300 SM 11064 kg/km
3800391 3x300 SM 14900 kg/km
3800392 3x300 RM/150 17661 kg/km
3800393 4x300 SM 19982 kg/km
3802990 48x25 RM 3325 kg/km
3804054 5x1.5 RM 445 kg/km
3804055 5x2.5 RM 627 kg/km
3804056 5x4 RM 774 kg/km
3804057 5x6 RM 950 kg/km
3804058 5x10 RM 1406 kg/km
3804059 5x16 RM 1867 kg/km
3804060 5x25 RM 2636 kg/km
3804061 5x35 RM 3626 kg/km
3804062 7x1.5 RM 607 kg/km
3804063 12x1.5 RM 837 kg/km
3804064 14x1.5 RM 909 kg/km
3804065 16x1.5 RM 1118 kg/km
3804066 19x1.5 RM 1210 kg/km
3804067 24x1.5 RM 1451 kg/km
3804068 27x1.5 RM 1536 kg/km
3804069 37x1.5 RM 1876 kg/km
3804070 48x1.5 RM 2497 kg/km
3804071 7x2.5 RM 736 kg/km
3804072 12x2.5 RM 1176 kg/km
3804073 14x2.5 RM 1286 kg/km
3804074 16x2.5 RM 1380 kg/km
3804075 19x2.5 RM 1525 kg/km
3804076 24x2.5 RM 1860 kg/km
3804077 27x2.5 RM 1982 kg/km
3804078 37x2.5 RM 2665 kg/km
