ÖLFLEX® POWER LV (N)2XYRY SC 1x25 BK

Power cables; 1x25 RM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM470.90 MYR Sold out
Inclusive of tax

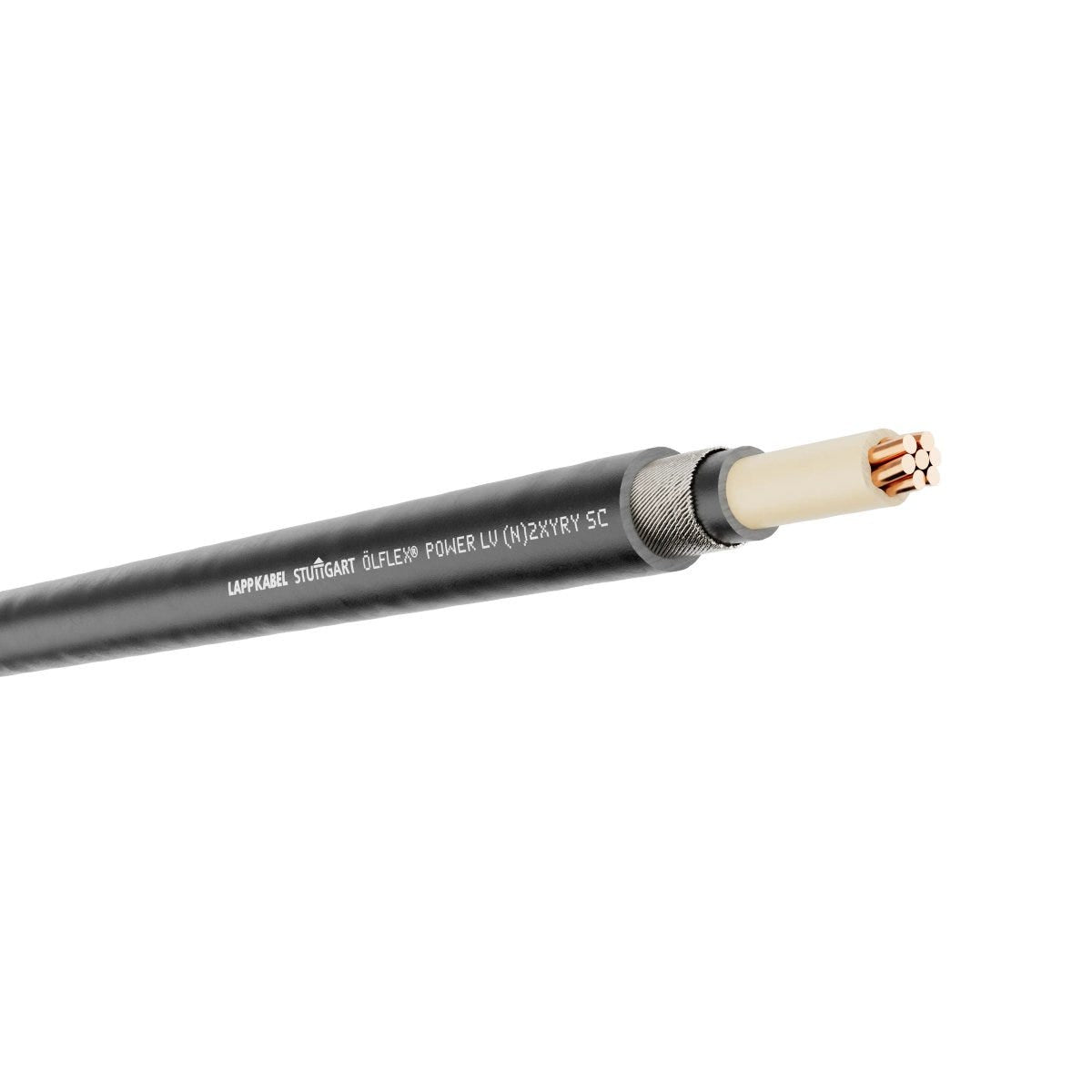

Primary ImagePrimary Image

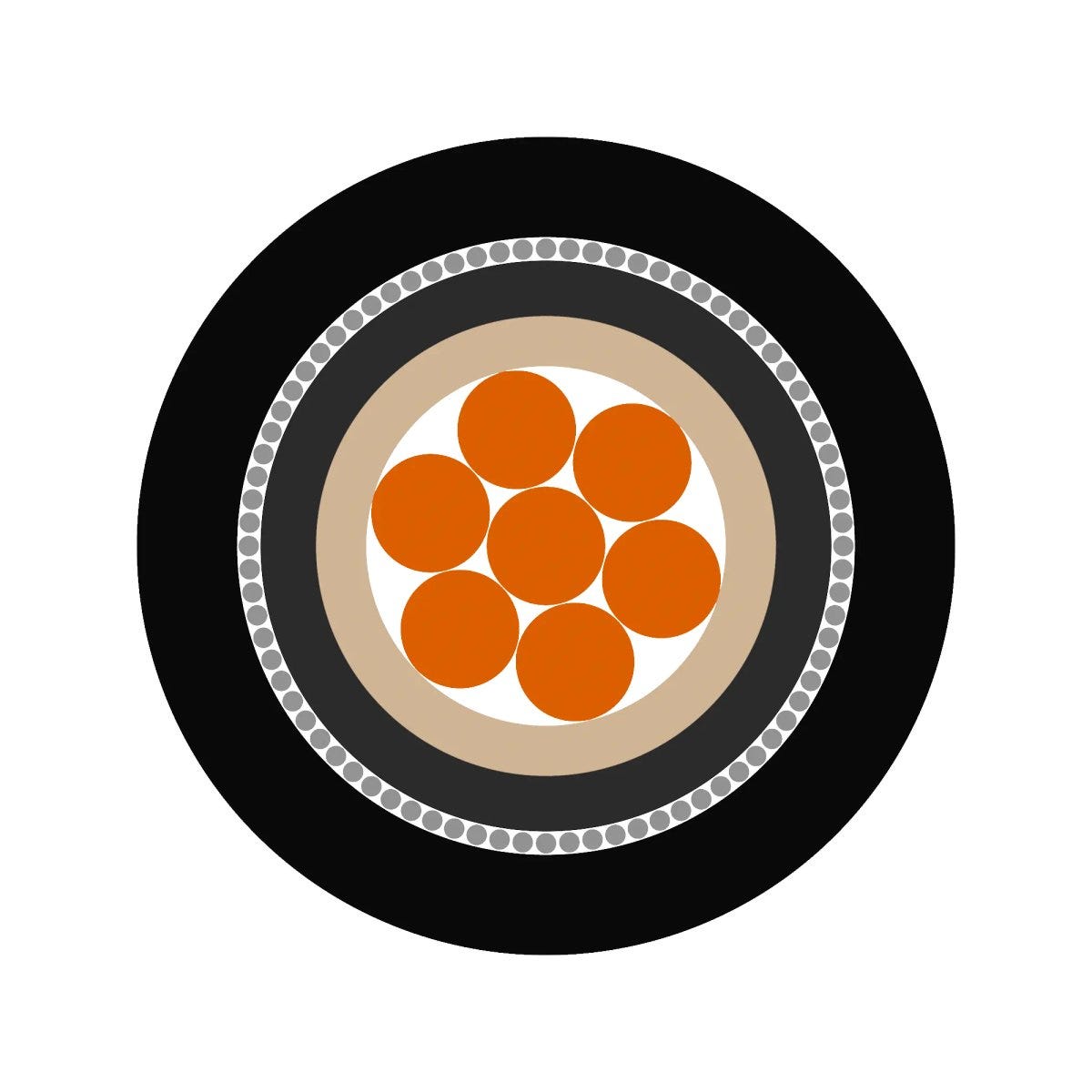

Secondary ImageSecondary Image

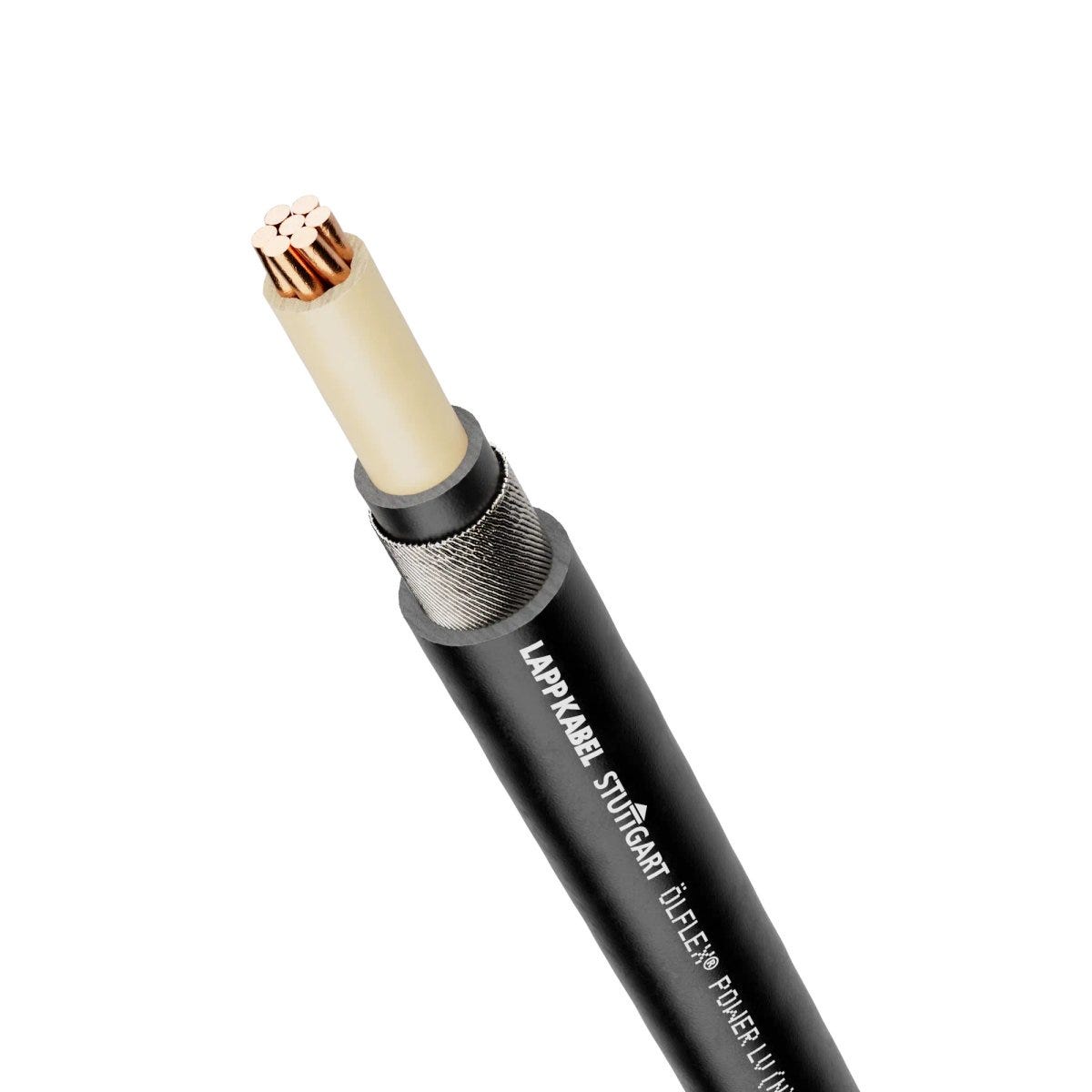

Tertiary ImageTertiary Image
Primary Image
Secondary Image
Tertiary Image
LAPPSKU: 3800315Article No.#: 3800315

ÖLFLEX® POWER LV (N)2XYRY SC 1x25 BK

Power cables; 1x25 RM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM470.90 MYR Sold out
Inclusive of tax
Primary Image
ÖLFLEX® POWER LV (N)2XYRY SC 1x25 BK
RM47.09 MYR
Payment & Security
PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant flame-retardant
uv-resistant. uv-resistant.
Certificate
CE marked CE marked
Benefits
XLPE-insulated, PVC-sheathed, low voltage power cable, with 600/1000V nominal voltage
Extra mechanical protection due to aluminium armour
Flame retardant according to IEC 60332-1-2; reduces the risk of flame propagation and high smoke density in the event of a fire
Multi-stranded wire according to IEC 60228 CI.2
Good flexibility due to minimum bending radius of 10 x cable diameter.
Applications
For main power distribution and lighting circuits in residential and commercial areas
For use in power and control circuits and telecommunication power supply systems
Suitable for fixed installations in environments with ambient temperatures between -40°C to +90°C
Suitable for outdoor applications due to UV-resistant outer sheath
Suitable for direct burial installations and in air or ducts.

Technical Attributes

General Information
Product type Power cables
Brand ÖLFLEX®
Copper index 228.300  kg/km
Weight 645 kg/km
Electrical Characteristics
Nominal voltage U0/U: 0,6/1 kV AC rms according to IEC
Test voltage 3.5  kV
Product Design
Conductor abbreviation 1x25 RM
Shape of cable Round
Outer sheath colour black
Conductor design IEC 60228 class 2: multi-wire
Nominal outer diameter 15.8  mm
Conductor material Bare copper
Insulation colour natural
Conductor shape Round
Number of cores 1
Nominal conductor cross-section (metric) 25  mm²
Core insulation basic material Cross-linked polyethylene
Conductor count/size 1x25
Basic material of outer sheath Polyvinylchloride
Including protective earth

Core insulation basic material, short form XLPE
Shielded

Basic material of outer sheath, short form PVC
Product Characteristics
Flame-retardant

Application area Fixed installation
Oil-resistant

Temperature, fixed installation min -40
Temperature, fixed installation max 90
UV-resistant

Temperature, fixed installation -40 °C to 90 °C max. conductor temperature
Flame retardance according to IEC 60332-1-2
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Suitable for underground installation direct, in cable trench, in protective cable conduit
For torsional load

Halogenfree

Certifications and Standards
HAR-certified

CE marked

VDE certified

Documentation
Downloads
Datasheet - en-UK (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ÖLFLEX® POWER LV (N)2XYRY SC
Article number Conductor abbreviation Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
3800315 1x25 RM 645 kg/km
3800316 1x35 RM 888 kg/km
3800317 1x50 RM 1107 kg/km
3800318 1x70 RM 1418 kg/km
3800319 1x95 RM 1913 kg/km
3800320 1x120 RM 2275 kg/km
3800321 1x150 RM 2718 kg/km
3800322 1x185 RM 3245 kg/km
3800323 1x240 RM 4021 kg/km
3800324 1x300 RM 5141 kg/km
3800325 1x400 RM 6474 kg/km
3800326 1x500 RM 7872 kg/km
3800327 1x630 RM 10177 kg/km
3800328 1x800 RM 12494 kg/km
3800329 1x1000 RM 15268 kg/km
