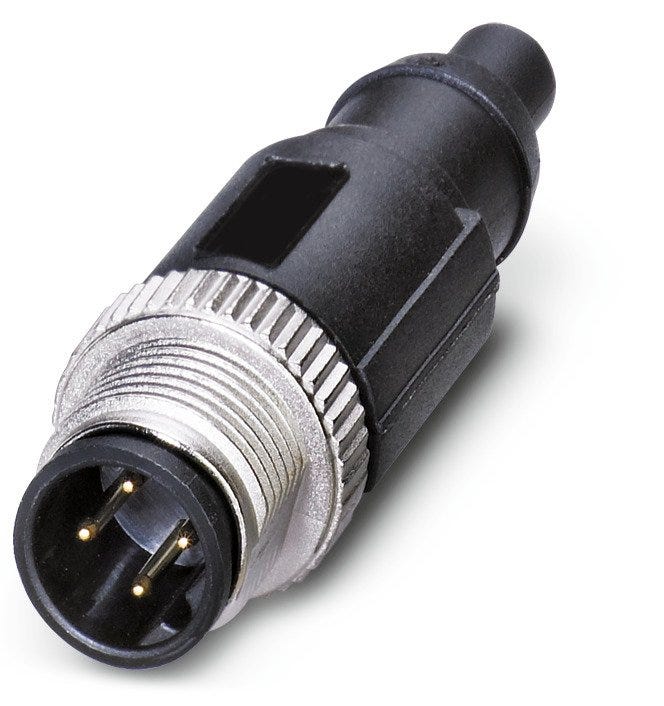

AB-C4-M12MS-PB-TR
Terminating resistor; PROFIBUS DP; M 12; Plug; Shielded: No
AB-C4-M12MS-PB-TR
RM157.42 MYR
/
AB-C4-M12MS-PB-TR
RM157.42 MYR
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
Certificate
PROFIBUS DP, PROFIBUS PA
Benefits
Cost efficient termination of a bus systems, Space-saving due to compact dimensions, Robust design
Applications
Mechanical and plant engineering
Technical Attributes
General Information
| Product type | Terminating resistor |
| valid fieldbus or Ethernet system | PROFIBUS DP |
| Delivery Unit | 5.000 |
| Weight | 0.01 kg |
Electrical Characteristics
Product Design
| Connector housing angle | 180 |
| Coded |
|
| Design connector housing | Straight |
| Contact coating material, short form | Ni/Au |
| Connector type | Plug |
| Connector format | M 12 |
| Housing base material | Thermoplastic polyurethane |
| With thread |
|
| Housing base material, short form | TPU |
| Number of contacts | 4 |
| Status indication |
|
| Contact material | Copper-tin |
| Shielded |
|
| Coding type | B-inverse |
| Contact material, short form | CuSn |
Product Characteristics
| IP protection rating | IP 65, IP 67 |
| Vibration protection |
|
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 90 |
| Contact application areact | BUS |
Certifications and Standards
| Product standard according to IEC | M12 according to IEC 61076-2-101 |
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
