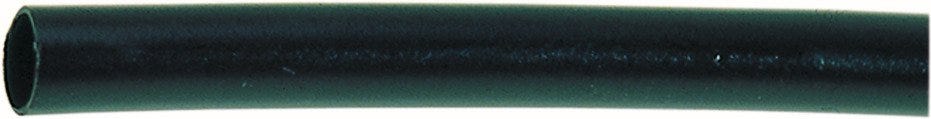

INSULATING TUBE ISY 5 BK

Insulating tube; black;
LAPPSKU: 61793060Article No.#: 61793060

INSULATING TUBE ISY 5 BK

Insulating tube; black;
INSULATING TUBE ISY 5 BK
RM1.74 MYR
Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance cold resistance
oil resistant oil resistant
uv-resistant. uv-resistant.

Technical Attributes

General Information
Product type Insulating tube
Delivery Unit 500.000
Weight 13.64 kg/km
Electrical Characteristics
Dielectric strength 14
Product Design
Colour black
Inner diameter 5.00
Total length 500
Panel thickness 0.60
Material Soft PVC
Outer diameter 6.20
Product Characteristics
Flame-retardant

Oil-resistant

UV-resistant

Halogenfree

Certifications and Standards
UL listed

Product standard according to IEC IEC 60684-3
cUR recognized

UL recognized

cUL listed

VDE certified

CSA certified

EAC certification number Отказное письмо № 18/1
EAC-certified Not required
Documentation
Downloads
Datasheet - de-DE (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Trade product, not a LAPP product.
Product Family List
All articles from Insulating tube ISY
Article number Imp inner diam Inner diameter Imp outer diam Outer diameter Colour Imp wall thickness shrink tube Panel thickness
61793030 2.00 2.80 black 0.40
61793040 3.00 3.80 black 0.40
61793050 4.00 5.00 black 0.50
61793060 5.00 6.20 black 0.60
61793070 6.00 7.20 black 0.60
61793080 7.00 8.40 black 0.70
61793090 8.00 9.40 black 0.70
61793100 9.00 10.40 black 0.70
61793110 10.00 11.40 black 0.70
61793116 10.00 11.40 white 0.70
61793119 16 18 black 1.00
