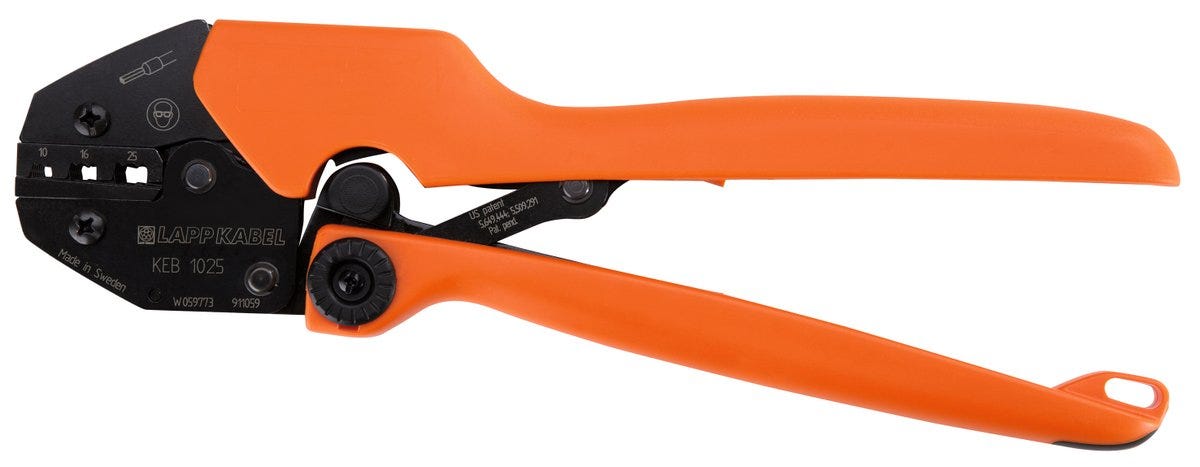

CRIMPING PLIERS KEB 1025
Crimping tool; For cross-section (min./max.): 10mm² - 25mm²; Crimping profile: Trapezoid
CRIMPING PLIERS KEB 1025
RM1,732.46 MYR
/
CRIMPING PLIERS KEB 1025
RM1,732.46 MYR
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Benefits
Unique mechanism reduces the manual force from 450 N to 250 N, Handles suit both large and small hands, Locking function that is released only after completion of the pressing operation, Tested for a minimum of 80,000 pressings
Applications
Mini-force tools for pressing insulated and non-insulated conductor end sleeves from 10 - 25 mm²
Technical Attributes
General Information
| Product type | Crimping tool |
| Delivery Unit | 1.000 |
| Weight | 0.57 kg |
Electrical Characteristics
Product Design
| Colour | orange |
| Crimping profile | Trapezoid |
| Total length | 220 |
| For pressing | End sleeve |
| For cross-section (max.) | 25 |
| For cross-section (min.) | 10 |
Product Characteristics
| Number of application operations | 80000 |
| Pressing force | 450 |
Certifications and Standards
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
Product Family List
All articles from KEB 1025 crimping pliers
| Article number | For cross-section (min.) | For cross-section (max.) | Crimping profile |
|---|---|---|---|
| 61791065 | 10 | 25 | Trapezoid |
