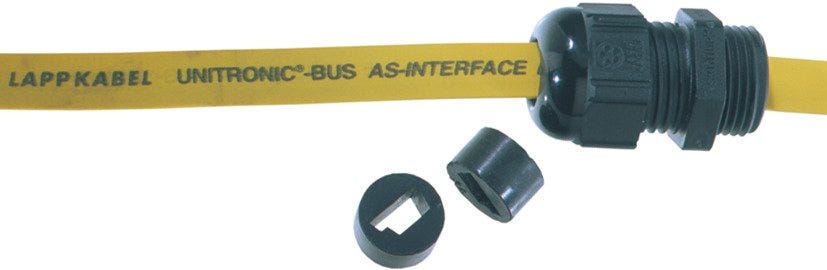

SKINTOP® DIX ASI PG 11

Sealing insert; PG 11; Number of cable entries: 1pc.; black
LAPPSKU: 53611000Article No.#: 53611000

SKINTOP® DIX ASI PG 11

Sealing insert; PG 11; Number of cable entries: 1pc.; black
SKINTOP® DIX ASI PG 11
RM6.49 MYR
Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance cold resistance
halogen-free halogen-free
oil resistant oil resistant
chemical resistance chemical resistance
Certificate
CE marked CE marked
Benefits
Special design with precise pre-boring for easy insertion of an AS-I bus cable
Protection class IP 68 can be achieved if the hole is optimally occupied
High functional reliability thanks to optimum strain relief.
Applications
For use with SKINTOP®/SKINTOP® CLICK cable glands that have a PG thread
To be used instead of the standard sealing insert in the SKINTOP® cable gland
UV and oil-resistant material.

Technical Attributes

General Information
Product type Sealing insert
Packaging type Bag
Brand SKINTOP®
Delivery Unit 50.000
Weight 0.001 kg
Electrical Characteristics
Product Design
Number of cable entries 1
EMC screening

Slit

Thread size PG 11
Colour black
Total height 8.5
Material Acrylonitrile butadiene rubber
Product Characteristics
Flame-retardant

IP protection rating IP 68 - 5 bar (30 min), IP 54
Oil-resistant

Temperature (min.) -40
Suitable for EX-applications

Acid-resistant

Chemical resistant

UV-resistant

Temperature (max.) 100
Halogenfree

Certifications and Standards
Ecolab certified

CE marked

Documentation
Downloads
CE declaration of conformity - en-UK (PDF)
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
Selection table - it-IT (PDF)
Selection table - pl-PL (PDF)
Selection table - cs-CZ (PDF)
Selection table - es-ES (PDF)
Selection table - de-DE (PDF)
Selection table - fr-FR (PDF)
Selection table - ro-RO (PDF)
Selection table - tr-TR (PDF)
Selection table - nl-NL (PDF)
Selection table - zh-CN (PDF)
Selection table - en-UK (PDF)
Selection table - pt-PT (PDF)
Selection table - ru-RU (PDF)
Selection table - ja-JP (PDF)
Selection table - ko-KR (PDF)
Technical table - tr-TR (PDF)
Technical table - tr-TR (PDF)
Technical table - tr-TR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - zh-CN (PDF)
Technical table - zh-CN (PDF)
Technical table - zh-CN (PDF)
Technical table - ja-JP (PDF)
Technical table - de-DE (PDF)
Technical table - cs-CZ (PDF)
Technical table - cs-CZ (PDF)
Technical table - nl-NL (PDF)
Technical table - nl-NL (PDF)
Technical table - nl-NL (PDF)
Technical table - de-DE (PDF)
Technical table - de-DE (PDF)
Technical table - pt-PT (PDF)
Technical table - pt-PT (PDF)
Technical table - pt-PT (PDF)
Technical table - ja-JP (PDF)
Technical table - ja-JP (PDF)
Technical table - cs-CZ (PDF)
Technical table - ro-RO (PDF)
Technical table - fr-FR (PDF)
Technical table - en-UK (PDF)
Technical table - ro-RO (PDF)
Technical table - fr-FR (PDF)
Technical table - ro-RO (PDF)
Technical table - en-UK (PDF)
Technical table - en-UK (PDF)
Technical table - fr-FR (PDF)
Technical table - pl-PL (PDF)
Technical table - ru-RU (PDF)
Technical table - ru-RU (PDF)
Technical table - pl-PL (PDF)
Technical table - it-IT (PDF)
Technical table - it-IT (PDF)
Technical table - it-IT (PDF)
Technical table - ru-RU (PDF)
Technical table - pl-PL (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from SKINTOP® DIX-AUTOMATION AS-I
Article number Thread size Borehole diameter Imp bore diam Number of cable entries Delivery Unit
53611000 PG 11 1 50.000
