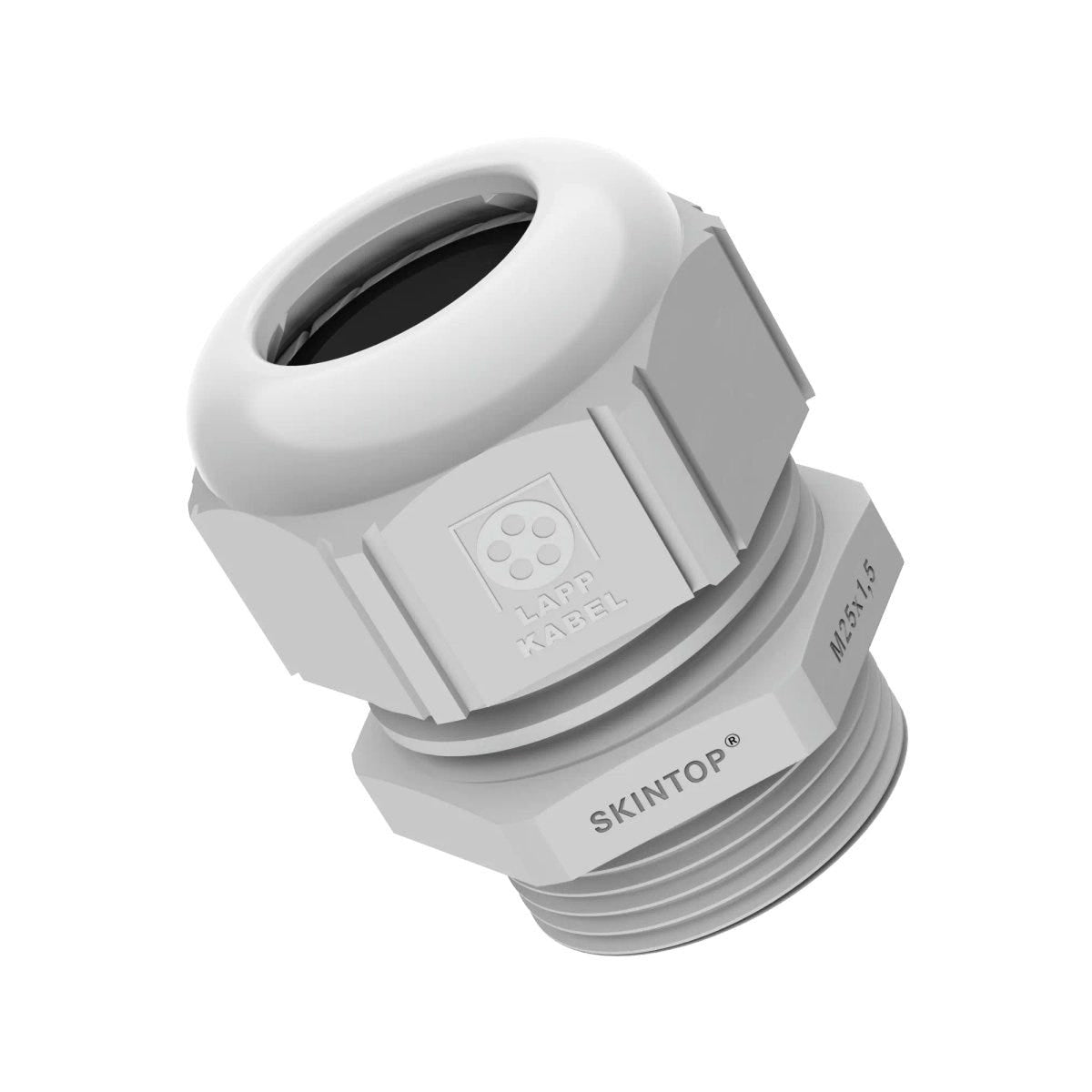

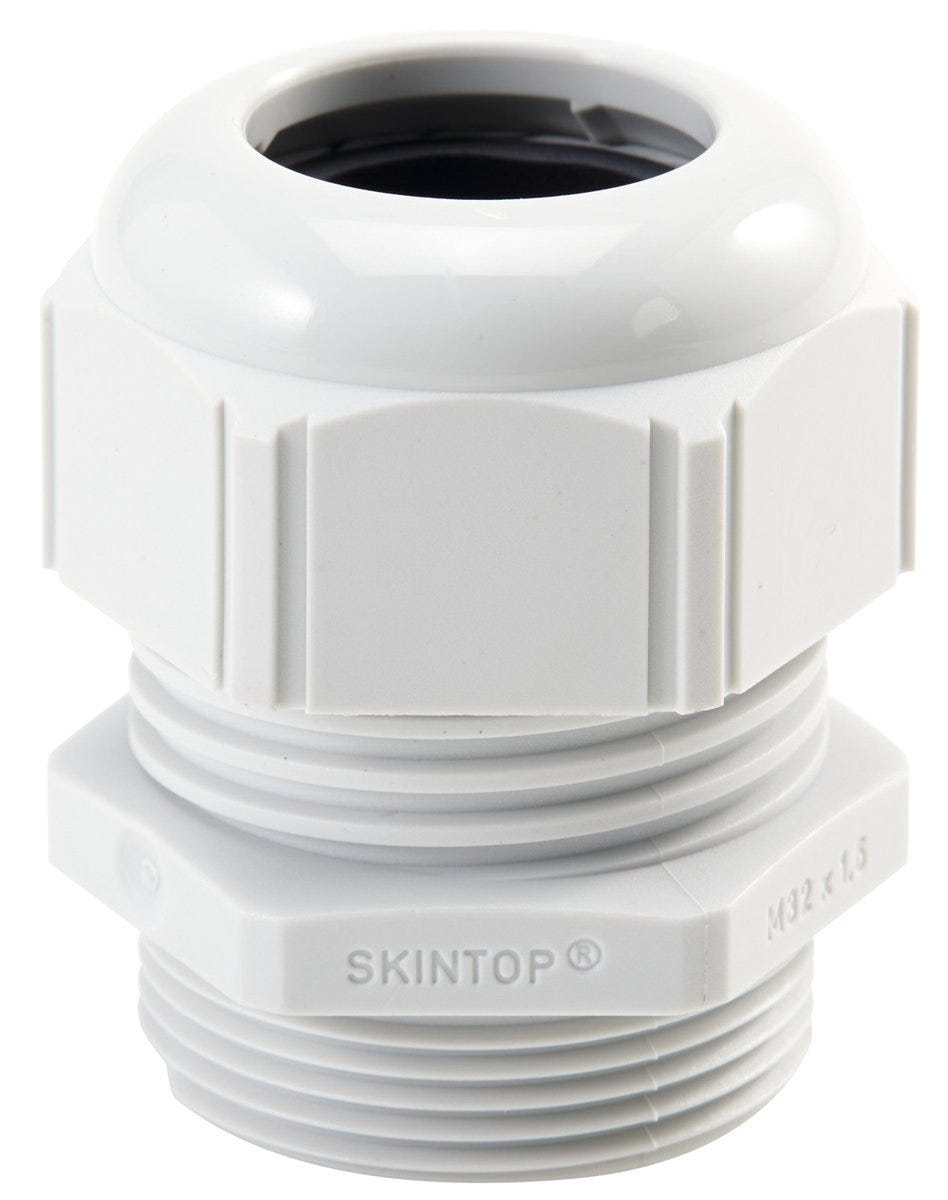

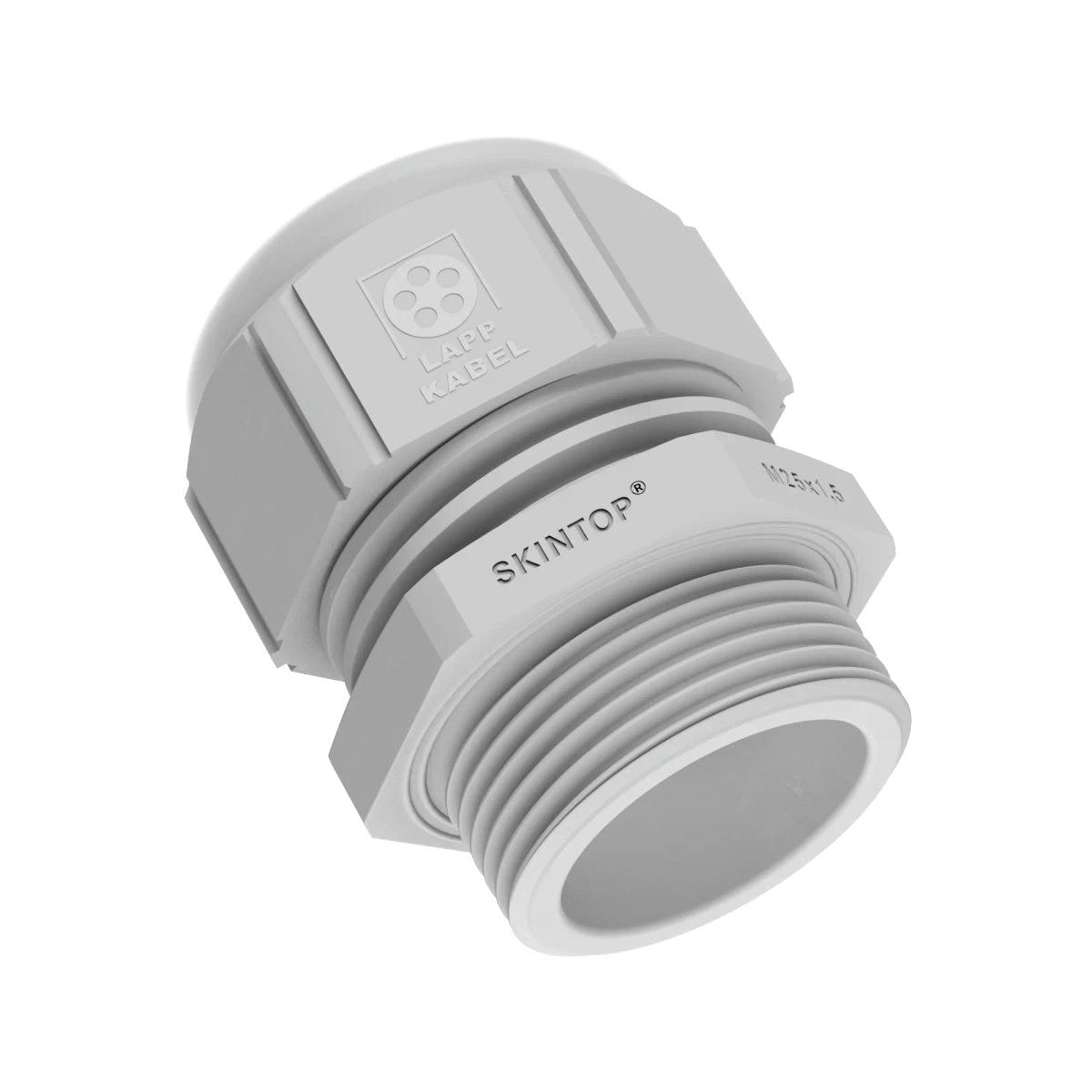

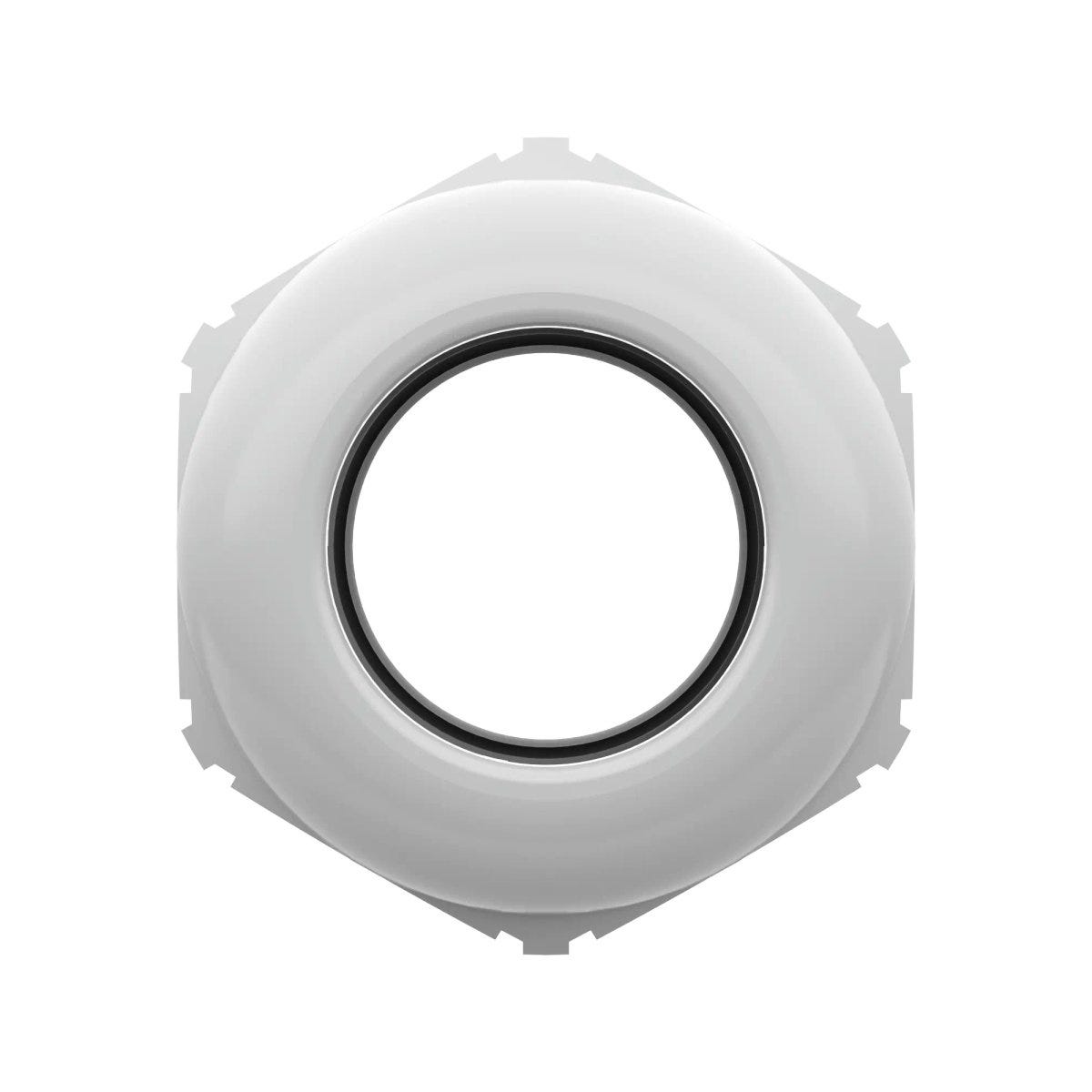

SKINTOP® STR PG 36 RAL 7035 LGY

Cable gland; PG 36; Clamping range (min./max.): 17 - 26 mm; Wrench width 1: 53; light grey; Polyamide Uncoated; IP 68 - 5 bar (30 min);
LAPPSKU: 53018170Article No.#: 53018170

SKINTOP® STR PG 36 RAL 7035 LGY

Cable gland; PG 36; Clamping range (min./max.): 17 - 26 mm; Wrench width 1: 53; light grey; Polyamide Uncoated; IP 68 - 5 bar (30 min);
SKINTOP® STR PG 36 RAL 7035 LGY
RM105.80 MYR
Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance cold resistance
flame-retardant flame-retardant
oil resistant oil resistant
chemical resistance chemical resistance
Product Carbon Footprint Product Carbon Footprint
Certificate
CE marked CE marked
TÜV Verband TÜV Verband
cUL listed US, UL listed US cUL listed US, UL listed US

Technical Attributes

General Information
Including lock nut

Including o-ring

Brand SKINTOP®
Product type Cable gland
Packaging type Bag
Delivery Unit 10.000
Weight 0.086 kg
Electrical Characteristics
Product Design
Total length 66
Number of cable entries 1
Material body Polyamide
Thread type PG
Cable gland design Straight
EMC screening

Material body shortname PA
Thread size PG 36
Colour light grey
Thread length 13.3
Hexagon corner dimensions 58.8
Bending protection

Clear width 26
O-ring material, short form NBR
Max. clamping range 26
Seal type Conduit sealing ring
O-ring material Acrylonitrile butadiene rubber
RAL colour RAL 7035
Glass-fibre reinforced

Pitch of thread 1,588
Surface protection Uncoated
Spanner size 1 53
Min. clamping range 17
For armoured cables

Sealing material, short form CR
Spanner size 2 53
Sealing material Chloroprene rubber
Product Characteristics
Flame-retardant

IP protection rating IP 68 - 5 bar (30 min)
Acid-resistant

Temperature static min. -40
Chemical resistant

UV-resistant

Temperature (max.) 100
Temperature dynamic min. -20
Oil-resistant

Max. dynamic temperature 100
Temperature (min.) -40
Strain relief

Suitable for EX-applications

Impact-resistant

Vibration protection

NEMA type rating Type 1, Type 12
Flame retardance according to UL 94 V-2
Temperature static max. 100
Halogenfree

Certifications and Standards
EHEDG certified

DNV-certified

cUR recognized

CSA certified

FDA certified

GGVS certified

Tested for fire protection for railway vehicles

UL certification according to UL 514B (CCN: QBPZ / e-file number: E79903)
Ecolab certified

cUL listed

UL listed

For Ex zone gas without
For Ex-zone dust without
CE marked

cUL certification according to CSA C22.2 No. 18.3 (CCN: QBPZ7 / e-file number: E79903)
UL recognized

NSF certified

VDE certified

Documentation
Downloads
approval tuev - de-DE (PDF)
Approval UL - en-UK (PDF)
assembly instructions - de-DE (PDF)
CE declaration of conformity - de-DE (PDF)
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
Selection table - it-IT (PDF)
Selection table - pl-PL (PDF)
Selection table - cs-CZ (PDF)
Selection table - es-ES (PDF)
Selection table - de-DE (PDF)
Selection table - fr-FR (PDF)
Selection table - ro-RO (PDF)
Selection table - tr-TR (PDF)
Selection table - nl-NL (PDF)
Selection table - zh-CN (PDF)
Selection table - en-UK (PDF)
Selection table - pt-PT (PDF)
Selection table - ru-RU (PDF)
Selection table - ja-JP (PDF)
Selection table - ko-KR (PDF)
Technical table - tr-TR (PDF)
Technical table - tr-TR (PDF)
Technical table - tr-TR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - es-ES (PDF)
Technical table - ko-KR (PDF)
Technical table - zh-CN (PDF)
Technical table - zh-CN (PDF)
Technical table - zh-CN (PDF)
Technical table - ja-JP (PDF)
Technical table - de-DE (PDF)
Technical table - cs-CZ (PDF)
Technical table - cs-CZ (PDF)
Technical table - nl-NL (PDF)
Technical table - nl-NL (PDF)
Technical table - nl-NL (PDF)
Technical table - de-DE (PDF)
Technical table - de-DE (PDF)
Technical table - pt-PT (PDF)
Technical table - pt-PT (PDF)
Technical table - pt-PT (PDF)
Technical table - ja-JP (PDF)
Technical table - ja-JP (PDF)
Technical table - cs-CZ (PDF)
Technical table - ro-RO (PDF)
Technical table - fr-FR (PDF)
Technical table - en-UK (PDF)
Technical table - ro-RO (PDF)
Technical table - fr-FR (PDF)
Technical table - ro-RO (PDF)
Technical table - en-UK (PDF)
Technical table - en-UK (PDF)
Technical table - fr-FR (PDF)
Technical table - pl-PL (PDF)
Technical table - ru-RU (PDF)
Technical table - ru-RU (PDF)
Technical table - pl-PL (PDF)
Technical table - it-IT (PDF)
Technical table - it-IT (PDF)
Technical table - it-IT (PDF)
Technical table - ru-RU (PDF)
Technical table - pl-PL (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from SKINTOP® ST / SKINTOP® STR
Article number Thread size Imp thread length Thread length Imp clamping range min Min. clamping range Imp clamping range max Max. clamping range Imp wrench width 1 Spanner size 1 Colour Delivery Unit
53015000 PG 7 7.8 2.5 6.5 15 silver grey 100.000
53015010 PG 9 8 3.5 8 19 silver grey 100.000
53015020 PG 11 8 4 10 22 silver grey 100.000
53015030 PG 13,5 9 6 12 24 silver grey 100.000
53015040 PG 16 10 9 14 27 silver grey 50.000
53015050 PG 21 11 13 18 33 silver grey 50.000
53015060 PG 29 10.7 14 25 42 silver grey 25.000
53015070 PG 36 13.3 24 32 53 silver grey 10.000
53015080 PG 42 13.4 35 38 60 silver grey 5.000
53015090 PG 48 14.3 39 44 65 silver grey 5.000
53015100 PG 7 7.8 1.5 5 15 silver grey 100.000
53015110 PG 9 8 2 6 19 silver grey 100.000
53015120 PG 11 8 2 7 22 silver grey 100.000
53015130 PG 13,5 9 4 9 24 silver grey 100.000
53015140 PG 16 10 6 12 27 silver grey 50.000
53015150 PG 21 11 9 16 33 silver grey 50.000
53015160 PG 29 10.7 11 20 42 silver grey 25.000
53015170 PG 36 13.3 17 26 53 silver grey 10.000
53015180 PG 42 13.4 22 31 60 silver grey 5.000
53015190 PG 48 14.3 26 35 65 silver grey 5.000
53015200 PG 7 7.8 2.5 6.5 15 black 100.000
53015210 PG 9 8 3.5 8 19 black 100.000
53015220 PG 11 8 4 10 22 black 100.000
53015230 PG 13,5 9 6 12 24 black 100.000
53015240 PG 16 10 9 14 27 black 50.000
53015250 PG 21 11 13 18 33 black 50.000
53015260 PG 29 10.7 14 25 42 black 25.000
53015270 PG 36 13.3 24 32 53 black 10.000
53015280 PG 42 13.4 35 38 60 black 5.000
53015290 PG 48 14.3 39 44 65 black 5.000
53015300 PG 7 7.8 1.5 5 15 black 100.000
53015310 PG 9 8 2 6 19 black 100.000
53015320 PG 11 8 2 7 22 black 100.000
53015330 PG 13,5 9 4 9 24 black 100.000
53015340 PG 16 10 6 12 27 black 50.000
53015350 PG 21 11 9 16 33 black 50.000
53015360 PG 29 10.7 11 20 42 black 25.000
53015370 PG 36 13.3 17 26 53 black 10.000
53015380 PG 42 13.4 22 31 60 black 5.000
53015390 PG 48 14.3 26 35 65 black 5.000
53018000 PG 7 7.8 2.5 6.5 15 light grey 100.000
53018010 PG 9 8 3.5 8 19 light grey 100.000
53018020 PG 11 8 4 10 22 light grey 100.000
53018030 PG 13,5 9 6 12 24 light grey 100.000
53018040 PG 16 10 9 14 27 light grey 50.000
53018050 PG 21 11 13 18 33 light grey 50.000
53018060 PG 29 10.7 14 25 42 light grey 25.000
53018070 PG 36 13.3 24 32 53 light grey 10.000
53018080 PG 42 13.4 35 38 60 light grey 5.000
53018090 PG 48 14.3 39 44 65 light grey 5.000
53018100 PG 7 7.8 1.5 5 15 light grey 100.000
53018110 PG 9 8 2 6 19 light grey 100.000
53018120 PG 11 8 2 7 22 light grey 100.000
53018130 PG 13,5 9 4 9 24 light grey 100.000
53018140 PG 16 10 6 12 27 light grey 50.000
53018150 PG 21 11 9 16 33 light grey 50.000
53018160 PG 29 10.7 11 20 42 light grey 25.000
53018170 PG 36 13.3 17 26 53 light grey 10.000
53018180 PG 42 13.4 22 31 60 light grey 5.000
53018190 PG 48 14.3 26 35 65 light grey 5.000
53110154 PG 7 7.8 2.5 6.5 15 silver grey 10.000
53110155 PG 9 8 3.5 8 19 silver grey 10.000
53110156 PG 11 8 4 10 22 silver grey 10.000
53110157 PG 13,5 9 6 12 24 silver grey 10.000
53110158 PG 16 10 9 14 27 silver grey 10.000
53110159 PG 21 11 13 18 33 silver grey 5.000
53110160 PG 29 10.7 14 25 42 silver grey 5.000
53110161 PG 36 13.3 24 32 53 silver grey 5.000
53110162 PG 42 13.4 35 38 60 silver grey 5.000
53110163 PG 48 14.3 39 44 65 silver grey 5.000
