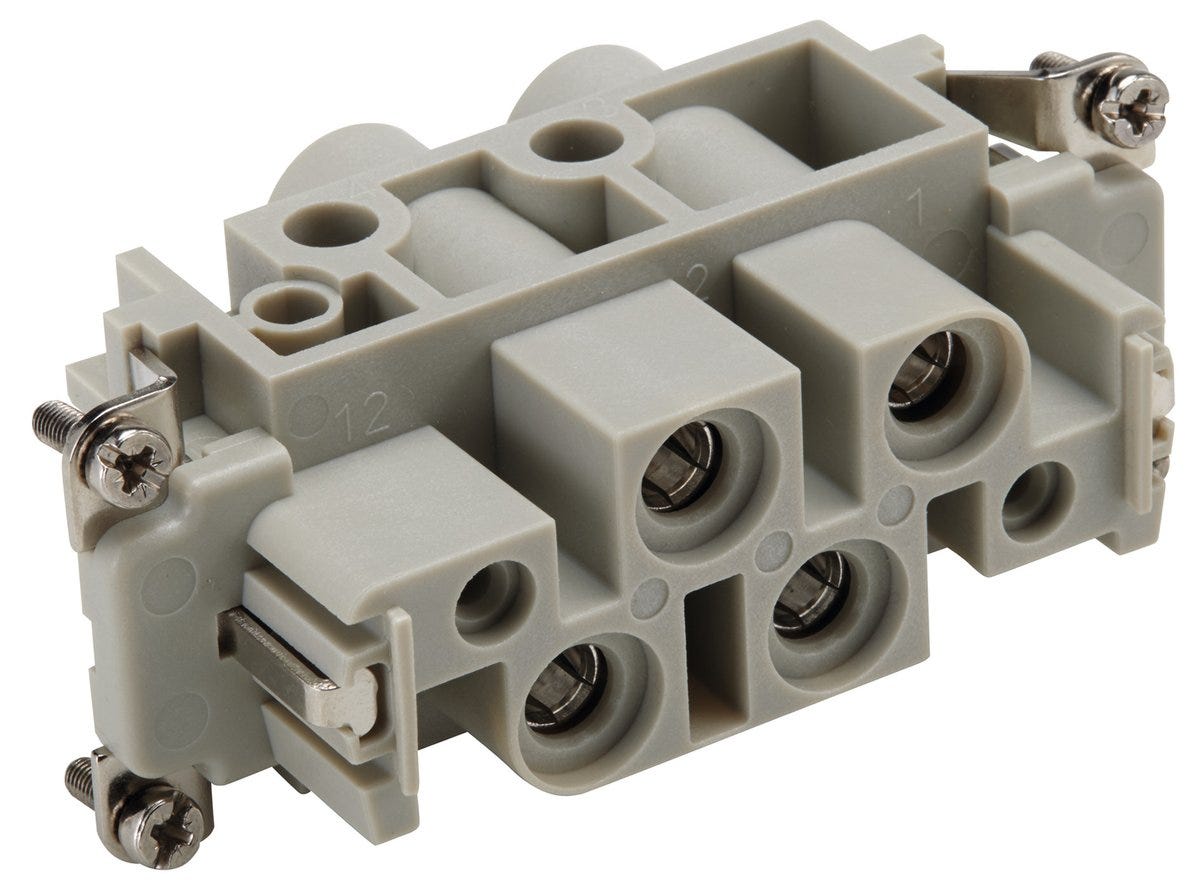

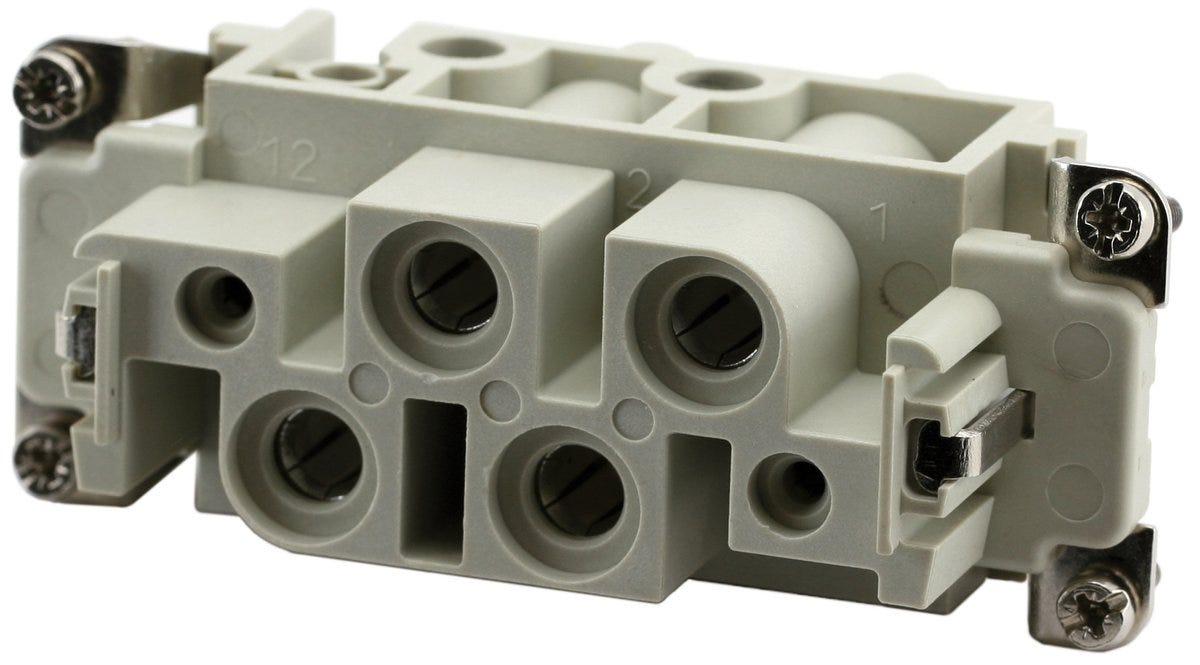

EPIC® K 4/0 BS
Insert with screw connection Socket; Number of contacts: 4+PE; Design size: 16B; 830 V AC rms / DC according to IEC; 80 A according to UL/CSA; For cross-section (min./max.): 1.5mm² - 16mm²; Contacts included; Polycarbonate
EPIC® K 4/0 BS
RM159.96 MYR
/
EPIC® K 4/0 BS
RM159.96 MYR
/
In stock (190)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
heat resistance
cold resistance
flame-retardant
Certificate
CE marked
UR recognised US, cUR recognised US
Benefits
The EPIC® Power K series of rectangular connectors includes particularly powerful crimp inserts for supplying power to servo drives
Suitable for transmissions up to 80 A and voltages up to 830 V
Easy to service screw connection enables assembly without special tools
Including high-quality, solid or turned contacts for the safe transmission of high currents
Silver-plated contact surface for low contact resistances and minimum heat generation at the contact
UL certification according to technical data enables the product to be used on the North American market
The respective pin and socket insert variants differ in quality according to their technical data.
Applications
For connecting devices and machines to a power supply in various applications
Typical areas of application are electric motors and servo drives
For use with the rectangular connector housings of the EPIC® H-B series
For use with cables from the ÖLFLEX® SERVO series
Suitable for outdoor use, subject to the temperature range.
Technical Attributes
General Information
| Brand | EPIC® |
| Contacts included |
|
| Product range | RECTANGULAR |
| Product type | Insert with screw connection |
| Scope of delivery | including contacts |
| Design size | 16B |
| Delivery Unit | 10.000 |
| Weight | 0.114 kg |
Electrical Characteristics
| Rated current | 80 A according to UL/CSA, 80 A according to IEC |
| Protective conductor integrated into insert |
|
| Over voltage category | III |
| Rated impulse voltage | 8 kV AC rms / DC according to IEC 61984 |
| Rated voltage | 830 V AC rms / DC according to IEC |
| Max. contact resistance | 5 |
Product Design
| With wire protection |
|
| Colour | grey |
| Connectable conductor cross section min. (AWG) | 16 AWG |
| Max. connectable conductor cross-section AWG | 6 AWG |
| Min. connectable conductor cross-section (mm2) | 1.5 |
| Number of contacts | 4+PE |
| Contact material | Brass |
| With protective conductor |
|
| Max. connectable conductor cross-section (mm2) | 16 |
| Contact material, short form | CuZn |
| Contact insert type | Socket |
| Material contact surface | Silver-plated |
| Contact insert material, short form | PC |
| PE connection type | Screw connection |
| Contact variant | Socket |
| Contact coating material, short form | Ag |
| Connector type | Socket |
| Material contact insert | Polycarbonate |
| Contact manufacturing method | Machined |
| Number of PE contacts | 1 |
| Conductor connection type | Screw connection |
| Contact insert without contacts |
|
| Contact diameter | 6 |
| Number of signal contacts | 0 |
| Number of power contacts | 4 |
Product Characteristics
| Flame-retardant |
|
| Minimum tightening torque for PE connection | 1.2 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Maximum tightening torque for PE connection | 1.2 |
| Operating temperature max. | 125 |
| Min. number of insertion cycles | 500 |
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Pollution degree | 3 |
| Flame retardance according to | UL 94 V-0 |
| Halogenfree |
|
Certifications and Standards
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| cUR category control number | ECBT8 |
| UL category control number | ECBT2 |
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR certification | according to UL 1977 (e-file number: E75770) |
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| CE marked |
|
| VDE certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
