ÖLFLEX® POWER LV (N)YY 2x70(S) BK

Power cables; 2x70 SM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM2,962.90 MYR Sold out
Inclusive of tax

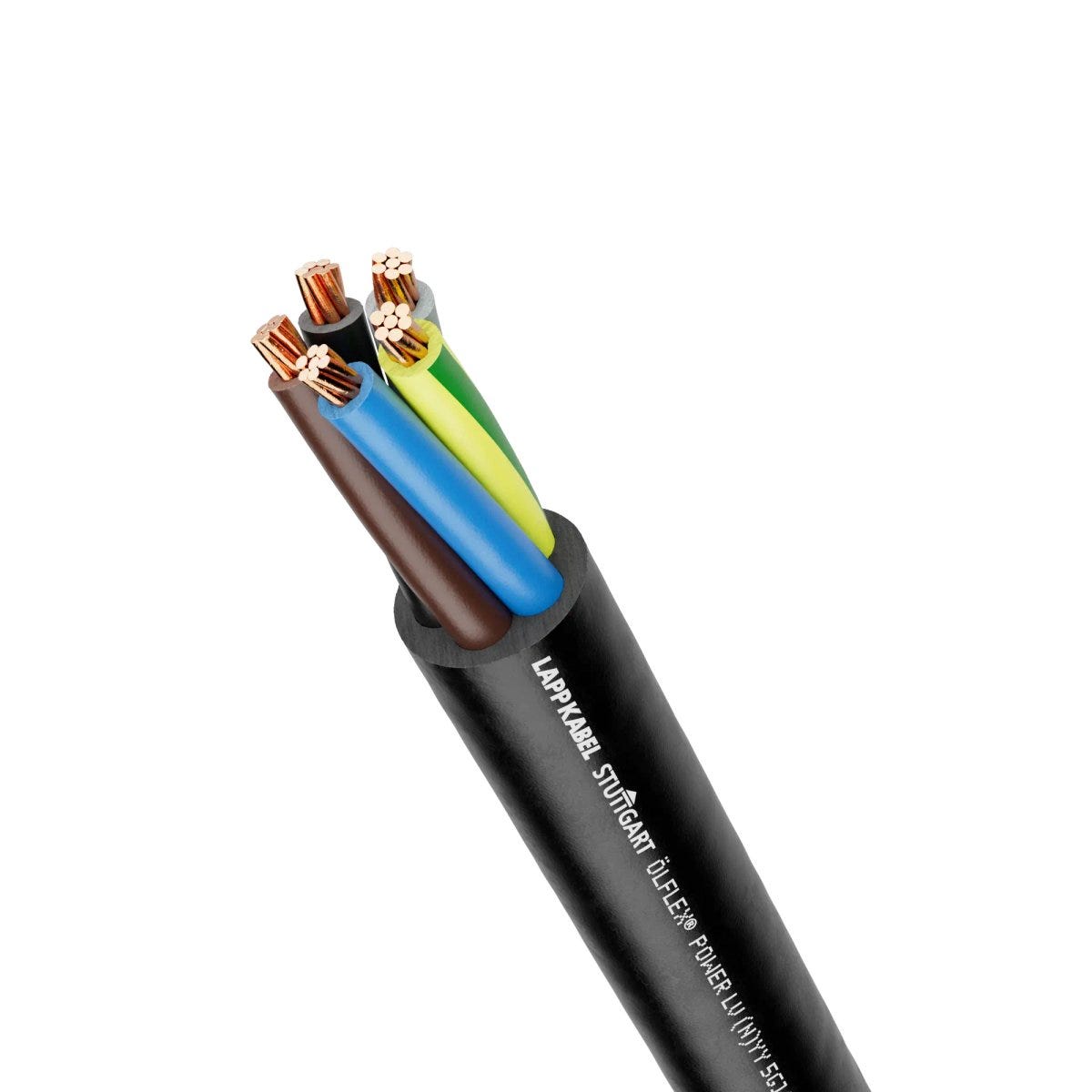

Primary ImagePrimary Image

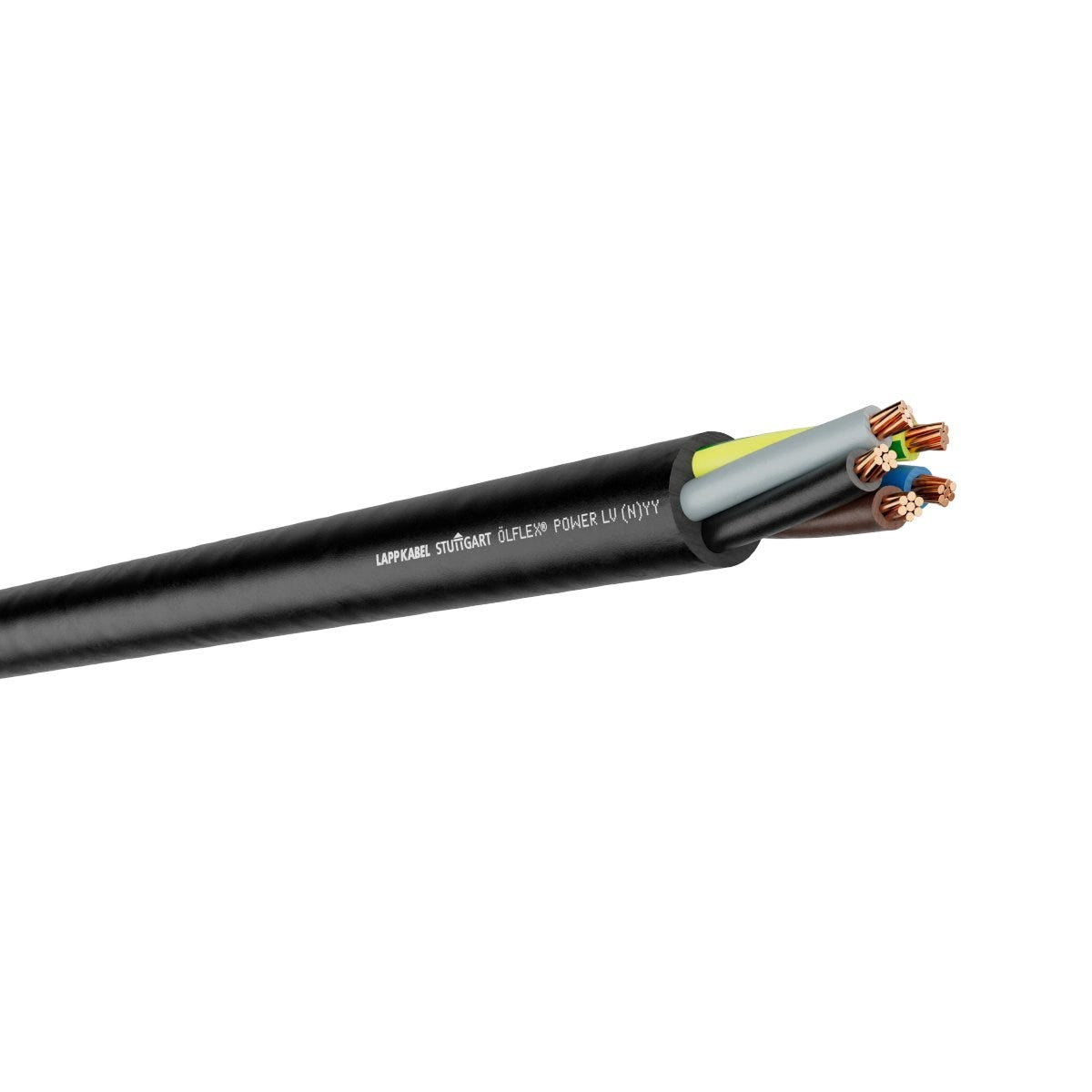

Secondary ImageSecondary Image
Tertiary ImageTertiary Image
Primary Image
Secondary Image
Tertiary Image
LAPPSKU: 3800160Article No.#: 3800160

ÖLFLEX® POWER LV (N)YY 2x70(S) BK

Power cables; 2x70 SM; U0/U: 0,6/1 kV; Bare Copper; PVC; Fixed Installation
RM2,962.90 MYR Sold out
Inclusive of tax
Primary Image
ÖLFLEX® POWER LV (N)YY 2x70(S) BK
RM296.29 MYR
Payment & Security
PayPal

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant flame-retardant
uv-resistant. uv-resistant.
Certificate
CE marked CE marked
Benefits
PVC-insulated, low voltage power cable with 600/1000V voltage
Reduced risk of flame propagation due to flame retardant property (IEC 60332-1-2)
Good flexibility due to minimum bending radius of 8 x cable diameter
Available in green-yellow for single core wire (IEC 60228 Cl.1) and black for multicore (IEC 60228 CI.2) wire.
Applications
For main power distribution and lighting circuits in residential, industrial and commercial areas
For use in power and control circuits and telecommunication power supply systems
Suitable for fixed installations, specifically in environments with ambient temperatures between -20°C to +70°C
Suitable for outdoor use due to UV-resistant outer sheath.

Technical Attributes

General Information
Product type Power cables
Brand ÖLFLEX®
Copper index 1288.000  kg/km
Weight 1700 kg/km
Electrical Characteristics
Nominal voltage U0/U: 0,6/1 kV AC rms according to IEC
Test voltage 3.5  kV
Product Design
Conductor abbreviation 2x70 SM
Shape of cable Round
Outer sheath colour black
Conductor design IEC 60228 class 2: multi-wire
Nominal outer diameter 26.0  mm
Conductor material Bare copper
Conductor shape Sector-shaped
Number of cores 2
Nominal conductor cross-section (metric) 70  mm²
Core insulation basic material Polyvinylchloride
Conductor count/size 2x70
Basic material of outer sheath Polyvinylchloride
Including protective earth

Core insulation basic material, short form PVC
Shielded

Basic material of outer sheath, short form PVC
Product Characteristics
Flame-retardant

Application area Fixed installation
Oil-resistant

Temperature, fixed installation min 20
Temperature, fixed installation max 70
UV-resistant

Temperature, fixed installation 20 °C to 70 °C max. conductor temperature
Flame retardance according to IEC 60332-1-2
UV-resistant according to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
For torsional load

Halogenfree

Certifications and Standards
HAR-certified

CE marked

VDE certified

Documentation
Downloads
Datasheet - en-UK (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ÖLFLEX® POWER LV (N)YY
Article number Conductor abbreviation Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
3800100 1x1.5 RE 52 kg/km
3800101 1x1.5 RM 55 kg/km
3800102 2x1.5 RE 135 kg/km
3800103 2x1.5 RM 145 kg/km
3800104 3x1.5 RE 160 kg/km
3800105 3x1.5 RM 165 kg/km
3800106 4x1.5 RE 185 kg/km
3800108 1x2.5 RE 65 kg/km
3800109 1x2.5 RM 70 kg/km
3800110 2x2.5 RE 170 kg/km
3800111 2x2.5 RM 180 kg/km
3800112 3x2.5 RE 200 kg/km
3800113 3x2.5 RM 210 kg/km
3800114 4x2.5 RE 240 kg/km
3800115 4x2.5 RM 255 kg/km
3800116 1x4 RE 95 kg/km
3800117 1x4 RM 100 kg/km
3800118 2x4 RE 240 kg/km
3800119 2x4 RM 255 kg/km
3800120 3x4 RE 290 kg/km
3800121 3x4 RM 305 kg/km
3800122 4x4 RE 350 kg/km
3800123 4x4 RM 375 kg/km
3800124 1x6 RM 125 kg/km
3800125 2x6 RM 285 kg/km
3800126 3x6 RM 370 kg/km
3800127 4x6 RM 455 kg/km
3800128 1x10 RM 175 kg/km
3800130 3x10 RM 515 kg/km
3800132 4x10 RM 665 kg/km
3800133 1x16 RM 240 kg/km
3800134 2x16 RM 590 kg/km
3800135 3x16 RM 740 kg/km
3800138 1x25 RM 350 kg/km
3800139 2x25 RM 900 kg/km
3800141 3x25 RM 1160 kg/km
3800144 4x25 RM 1465 kg/km
3800146 1x35 RM 460 kg/km
3800148 2x35 SM 930 kg/km
3800150 3x35 SM 1330 kg/km
3800153 4x35 SM 1740 kg/km
3800154 1x50 RM 595 kg/km
3800155 2x50 SM 1260 kg/km
3800156 3x50 SM 1750 kg/km
3800158 4x50 SM 2320 kg/km
3800159 1x70 RM 810 kg/km
3800160 2x70 SM 1700 kg/km
3800161 3x70 SM 2435 kg/km
3800163 4x70 SM 3215 kg/km
3800164 1x95 RM 1110 kg/km
3800165 2x95 SM 2310 kg/km
3800166 3x95 SM 3360 kg/km
3800168 4x95 SM 4400 kg/km
3800971 5x4 RM 408 kg/km
3804001 5x1.5 RE 203 kg/km
3804007 5x16 RM 1195 kg/km
3804009 7x1.5 RM 260 kg/km
3804010 12x1.5 RM 408 kg/km
3804011 14x1.5 RM 463 kg/km
3804012 16x1.5 RM 518 kg/km
3804013 19x1.5 RM 597 kg/km
3804014 24x1.5 RM 742 kg/km
3804016 37x1.5 RM 1077 kg/km
3804017 48x1.5 RM 1382 kg/km
3804018 7x2.5 RM 356 kg/km
3804019 12x2.5 RM 571 kg/km
3804020 14x2.5 RM 650 kg/km
3804021 16x2.5 RM 731 kg/km
3804022 19x2.5 RM 848 kg/km
3804023 24x2.5 RM 1058 kg/km
3804024 27x2.5 RM 1170 kg/km
3804025 37x2.5 RM 1556 kg/km
3804026 48x2.5 RM 2017 kg/km
