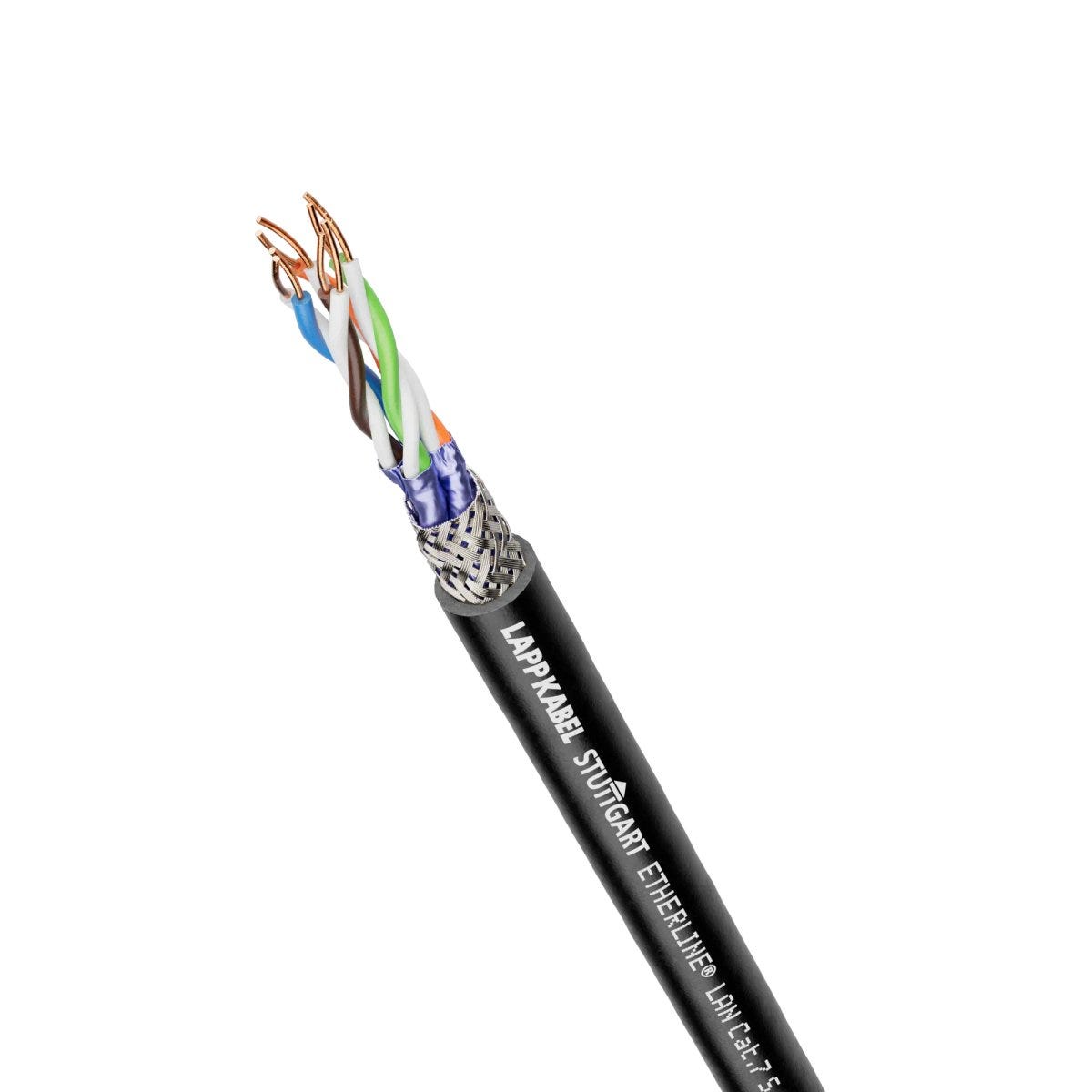

ETHERLINE® LAN Cat.7 S/FTP 4x2AWG23 PE
Ethernet cable; Fixed installation; Cat.7; S/FTP; PE; Halogenfree; black
ETHERLINE® LAN Cat.7 S/FTP 4x2AWG23 PE
RM16.32 MYR
/
ETHERLINE® LAN Cat.7 S/FTP 4x2AWG23 PE
RM16.32 MYR
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
halogen-free
uv-resistant.
icon sturgeon signal
Certificate
CE marked
Benefits
Fast information exchange through Ethernet technology. , For transmission of analogue and digital signals in the frequency range up to 1,000 MHz
Especially suitable for outdoor use thanks to the PE outer jacket
The "(L)PE" variant is transversely watertight thanks to an aluminium banding in the outer jacket and is therefore suitable for direct underground installation
Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP).
Applications
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801
Especially for environments where electromagnetic compatibility (EMC) is required
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T
Suitable for use in AC and DC charging infrastructures for electromobility
Suitable for outdoor use.
Technical Attributes
General Information
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| Copper index | 24.000 kg/km |
| Copper index (lb) | 161.273 lb |
| Weight | 75 kg/km |
Electrical Characteristics
| Maximum operating voltage (not for power transmission) | 100 |
| Nominal surge impedance | 100 |
| Segregation class according to EN 50174-2 | D |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 160.0 |
| Possible data transmission rates | 10000 |
| Test voltage | 1 kV |
| Signal propagation speed (nom.) | 0.77 |
| Rated voltage core to core | 50 V AC rms according to IEC |

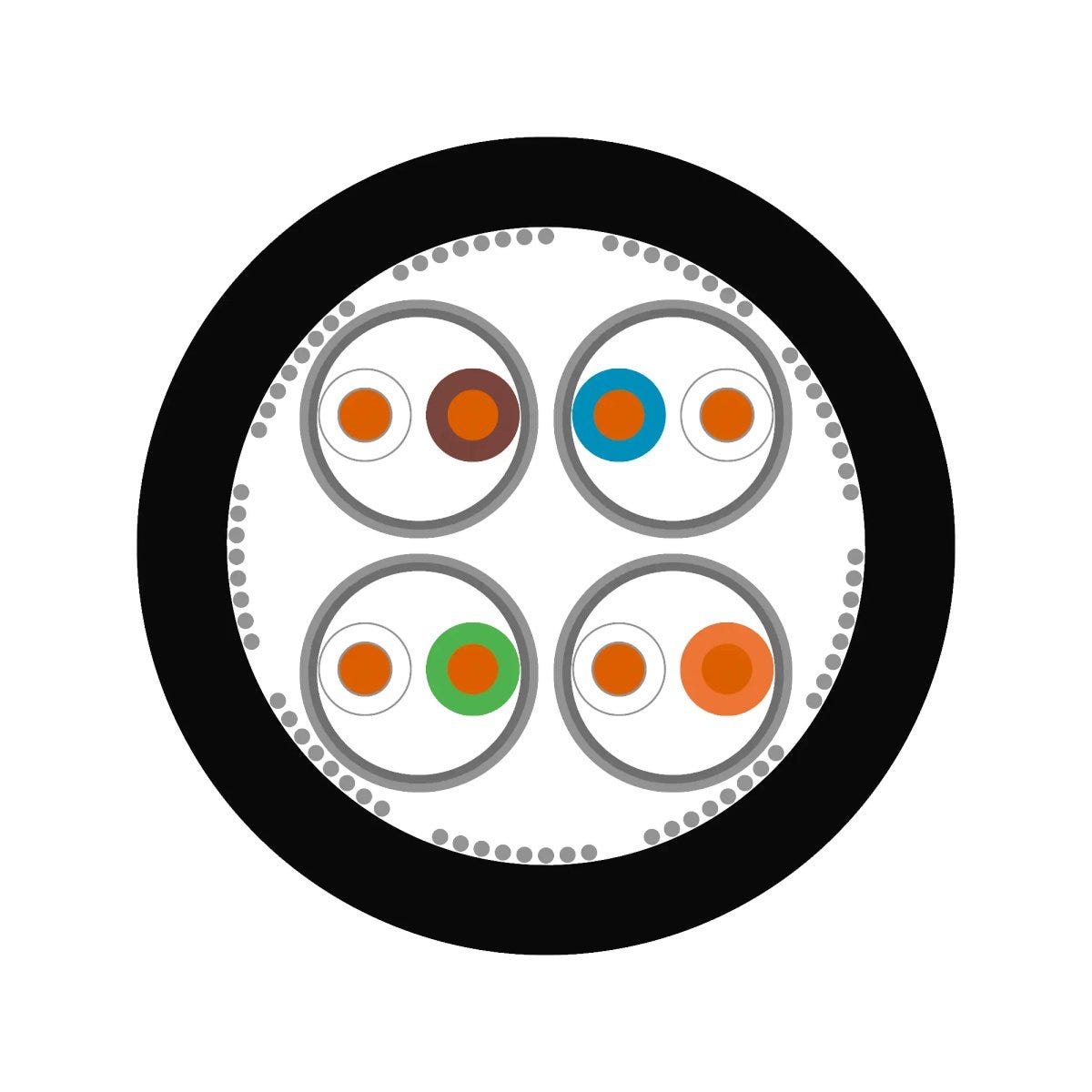

Product Design
| Conductor design | solid conductor |
| Nominal outer diameter | 7.7 mm |
| Conductor material | Bare copper |
| Min. outer diameter | 7.5 |
| Conductor count/size | 4x2x23AWG |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | black |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | S/FTP |
| Cable sheath RAL colour | RAL 9005 |
| With rodent protection |
|
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 8 |
| Nominal conductor cross-section (AWG) | 23 AWG |
| Core insulation basic material | Polyolefin |
| Basic material of outer sheath | Polyethylene |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| With armouring |
|
| Max. outer diameter | 7.9 |
| Basic material of outer sheath, short form | PE |
Product Characteristics
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Fast Connect (FC) cable |
|
| Installation temperature min. | -10 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 63.2 mm |
| PWIS-free |
|
| Application area | Fixed installation |
| Oil-resistant |
|
| Ethernet cable category | Cat.7 |
| Max. assembly temperature | 50 |
| Minimum bending radius, stationary | 8 x outer diameter |
| Water resistant |
|
| Temperature, fixed installation | -30 °C to 70 °C max. conductor temperature: |
| Installation type | Protective cable conduit |
| UV-resistant according to | EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use) |
| Windable |
|
| Halogenfree |
|
Certifications and Standards
| CE marked |
|
| CPR fire class | Fca |
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
