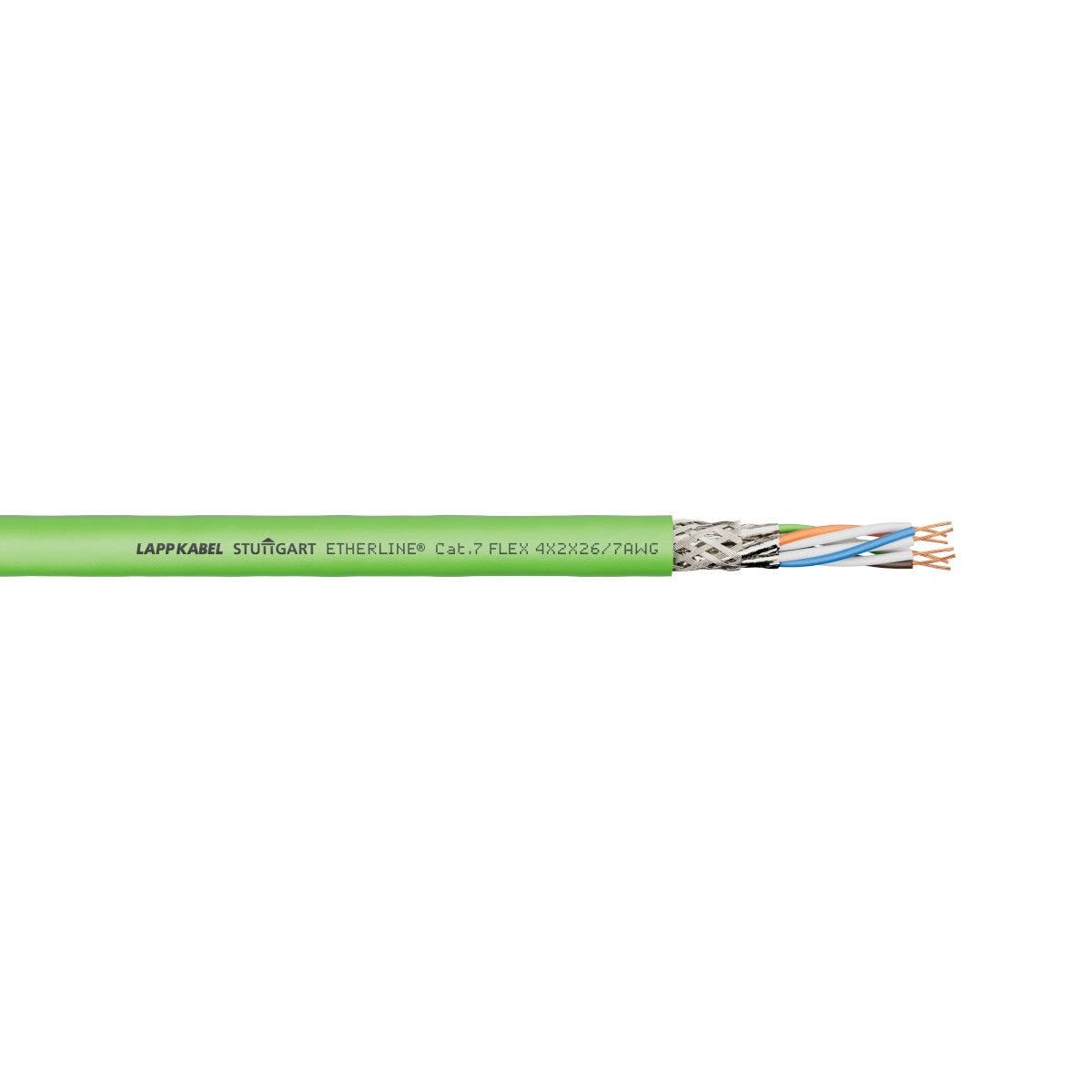

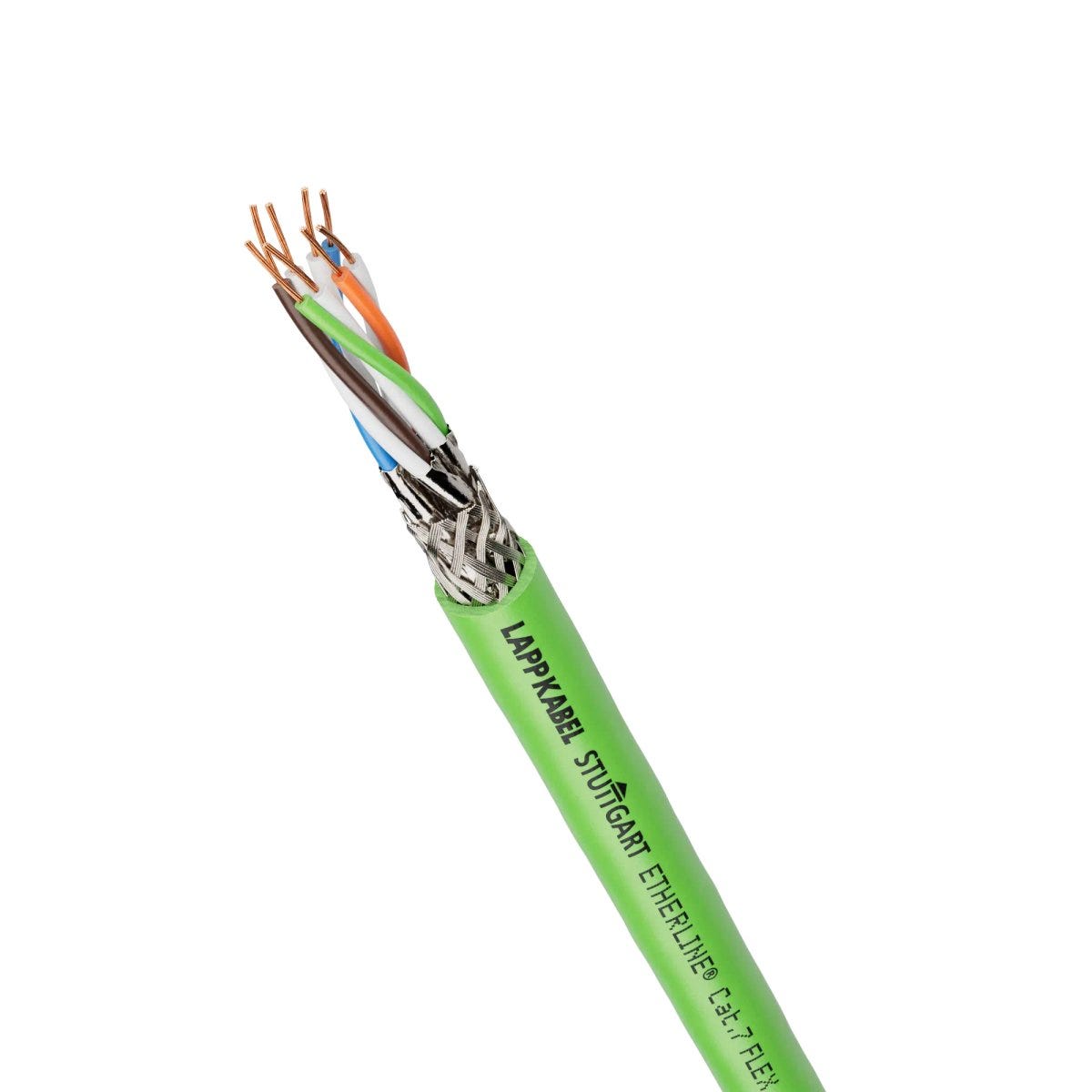

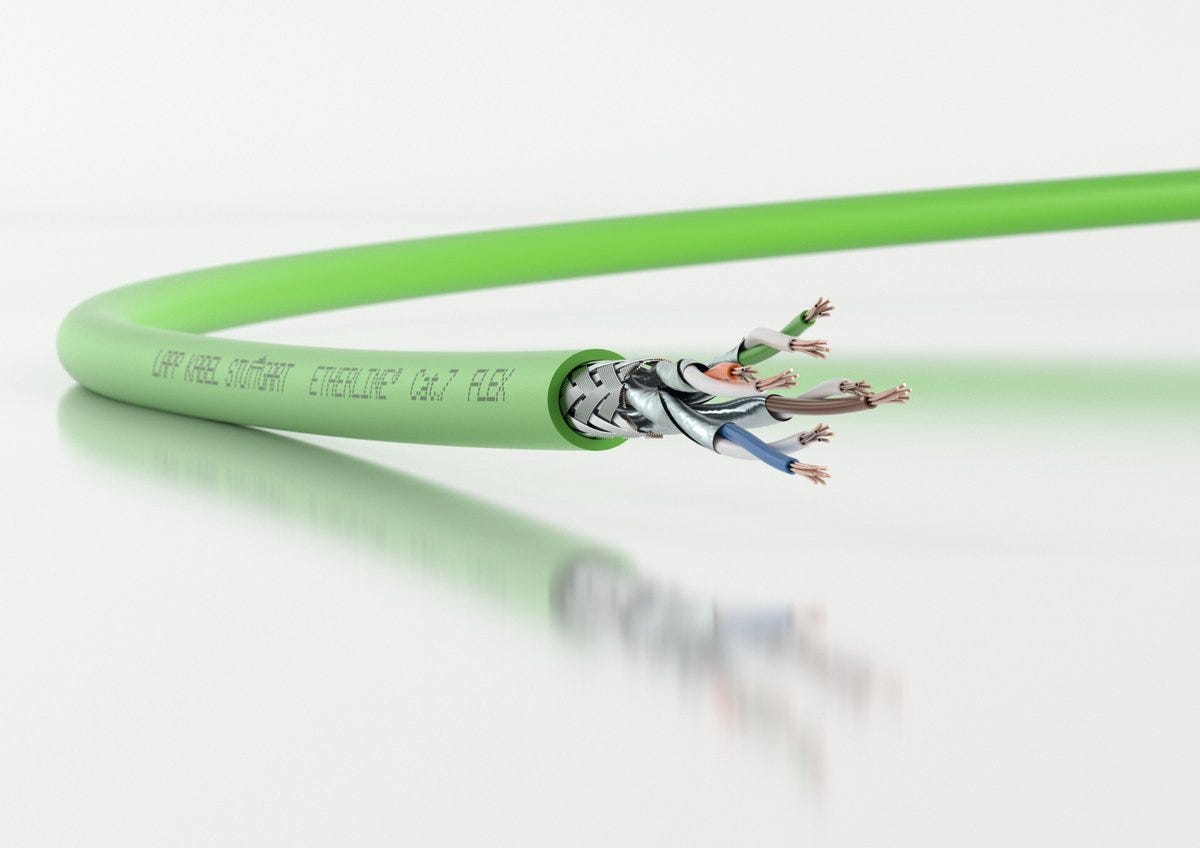

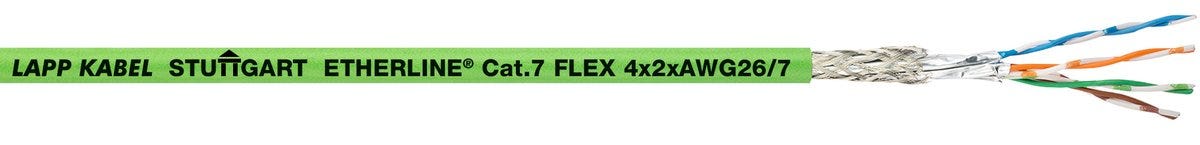

ETHERLINE® Cat.7 FLEX 4x2x26/7
Ethernet cable; Flexible; ETHERNET/IP, EtherCAT; Cat.7; S/FTP; PUR; Halogenfree; green
ETHERLINE® Cat.7 FLEX 4x2x26/7
RM25.38 MYR
/
ETHERLINE® Cat.7 FLEX 4x2x26/7
RM25.38 MYR
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
UR recognised US, cUR recognised US
ETHERNET/IP
Benefits
Fast information exchange through Ethernet technology. , For transmission of analogue and digital signals in the frequency range up to 600 MHz
Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts

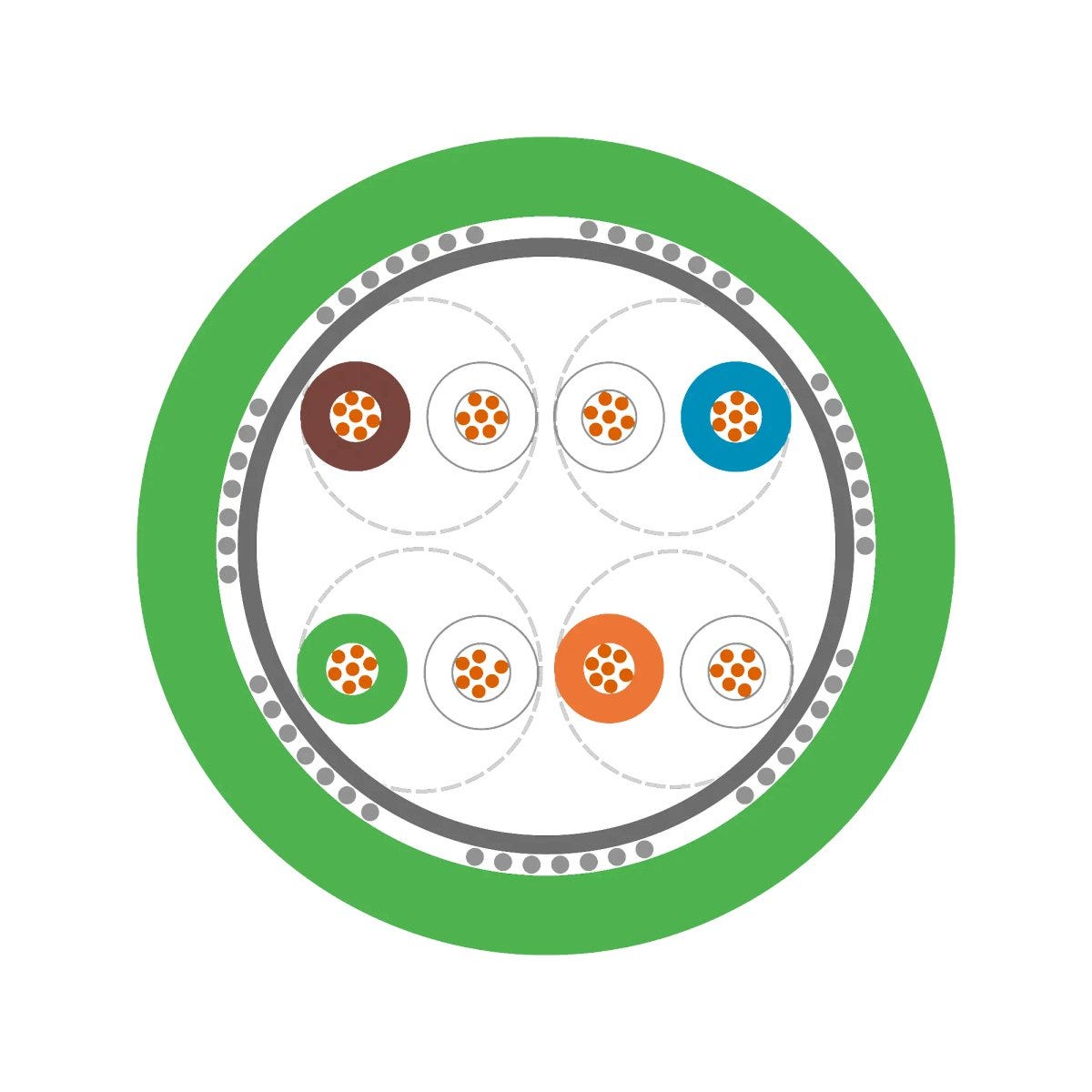

Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP)
UL/CSA certification according to technical data enables the product to be used in the North American market.
Applications
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T
Also suitable for EtherCAT and EtherNet/IP applications
Suitable for patch cable assembly up to 60 m cable length
For fixed installation and occasional flexing
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant
Flexible use up to -40°C.
Technical Attributes
General Information
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, EtherCAT |
| Copper index | 28.000 kg/km |
| Copper index (lb) | 188.130 lb |
| Weight | 46 kg/km |
Electrical Characteristics
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 150 |
| Possible data transmission rates | 10000 |
| Signal propagation speed (nom.) | 0.78 |
| Test voltage core/screening | 1 |
| Test voltage core/core | 1 |
| Rated voltage core to core | 1000 V AC rms according to UL AWM, 50 V AC rms according to IEC |
Product Design
| Nominal core diameter | 1.1 |
| Conductor design | 7-wire |
| Nominal outer diameter | 6.4 mm |
| Conductor material | Bare copper |
| Min. outer diameter | 6.1 |
| Nominal conductor cross-section (metric) | 0.14 mm² |
| Conductor count/size | 4x2x26/7AWG |
| Optical degree of coverage of the stranded screening, overall screen | 80 |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | green |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | S/FTP |
| Cable sheath RAL colour | RAL 6018 |
| With rodent protection |
|
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 8 |
| Nominal conductor cross-section (AWG) | 26 AWG |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| Max. outer diameter | 6.7 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PUR |
Product Characteristics
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | VDE 0472-815 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Installation temperature min. | -40 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 26.8 mm |
| PWIS-free |
|
| Application area | Flexible |
| max. conductor temperature, occasionally moved | -30 °C to 70 °C max. conductor temperature:, to 80 °C max. conductor temperature: according to UL AWM |
| Oil-resistant |
|
| Ethernet cable category | Cat.7 |
| Minimum bending radius in mm, occasionally flexing | 67.0 mm |
| Max. assembly temperature | 80 |
| Minimum bending radius, stationary | 4 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2, UL FT2 |
| Oil resistance according to | IEC 60811-404 |
| Windable |
|
| Halogenfree |
|
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| UL AWM certification | 21576 according to UL 758 (e-file number: E63634) |
| cUL listed |
|
| UL listed |
|
| cUR certification | AWM I A according to CSA C22.2 No. 210, AWM I B according to CSA C22.2 No. 210, AWM II A according to CSA C22.2 No. 210, AWM II B according to CSA C22.2 No. 210 |
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ETHERLINE® Cat.7 FLEX
| Article number | Conductor count/size | Basic material of outer sheath, short form | Number of cores | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|---|---|
| 2170934 | 4x2x26/7AWG | PUR | 8 | 6.4 | 46 kg/km |
