H-B 16 SDR-LB M25 ZW

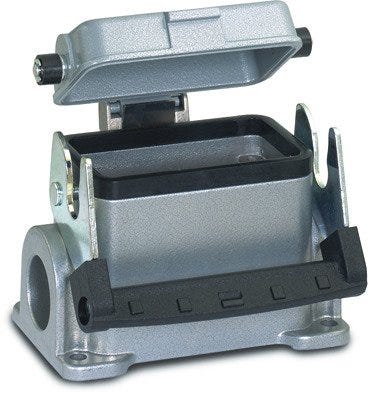

Surface-mount base; Design size: 16B; Plug connection design: Standard; Single Lever; Number of cable entries: 1; Aluminium, Powder-coated; IP protection rating mounted: IP 65
H-B 16 SDR-LB M25 ZW
RM275.26 MYR
/
H-B 16 SDR-LB M25 ZW
RM275.26 MYR
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
halogen-free
corrosion resistant
uv-resistant.
Certificate
CE marked
VDE certified
VDE Reg.-Nr. B437
UR recognised US, cUR recognised US
Benefits
The surface-mount base can be plugged with many common hoods
With a closed base and side cable entry for orderly cable routing
It is locked by means of a single lever made of steel
Protects against environmental influences when not plugged in
Meets protection class IP 65 when locked
UL certification according to technical data enables the product to be used on the North American market.
Applications
For protecting the connector insert against environmental influences
For use with many EPIC® rectangular connector inserts or module inserts
For connecting devices and machines to a power supply in various applications
With modular connector assembly, also suitable for signal and data transmission
Withstands high environmental and mechanical stress
Suitable for outdoor use.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Surface-mount base |
| Design size | 16B |
| Delivery Unit | 5.000 |
| Weight | 0.471 kg |
Electrical Characteristics
Product Design
| Locking bolt variant | Bolts for single lever |
| Number of cable entries | 1 |
| Design connector housing | Straight |
| EMC screening |
|
| Thread size | M 25 |
| Housing RAL colour | RAL 9006 |
| With cable gland |
|
| With hinged lid |
|
| Housing colour | grey |
| Housing coating | Powder-coated |
| Number of cable entries at the top | 0 |
| Number of side cable entries | 1 |
| Connector design | Standard |
| Lever material | Steel |
| Housing variant | Surface-mount base |
| Housing base material | Aluminium |
| With thread |
|
| Housing base material, short form | Al |
| With collar |
|
| Locking type | Single lever |
| With lever |
|
| Screen contact |
|
| Sealing material, short form | NBR |
| Sealing material | Acrylonitrile butadiene rubber |
Product Characteristics
| Corrosion-resistant |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 100 |
| Impact-resistant |
|
| Vibration protection |
|
| IP protection class plugged in | IP 65 |
| Corrosion-resistant according to | DIN EN 6988 |
| Halogenfree |
|
| Short-term temperature peaks | 125 |
Certifications and Standards
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| cUR category control number | ECBT2 |
| UL category control number | ECBT2 |
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR certification | according to UL 1977 (CCN: ECBT2 / e-file number: E75770), according to UL 50E (CCN: ECBT2 / e-file number: E75770) |
| cUR certification | according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770) |
| VDE registration number | B437 |
| CE marked |
|
| VDE certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from EPIC H-B 16 SDR-LB
| Article number | Thread size | Delivery Unit |
|---|---|---|
| 19076900 | M 25 | 5.000 |
